P55mm Pixel LED Screen 12V Addressable Waterproof Anti-cold UV UCS5603 4096 grey level 20MM 3535 RGB Pixel LED Mesh Light P55mm Pixel LED Screen 12V Addressable Waterproof Anti-cold UV UCS5603 4096 grey level 20MM 3535 RGB Pixel LED Mesh Light P55mm Pixel LED Screen 12V Addressable Waterproof Anti-cold UV UCS5603 4096 grey level 20MM 3535 RGB Pixel LED Mesh Light P55mm Pixel LED Screen 12V Addressable Waterproof Anti-cold UV UCS5603 4096 grey level 20MM 3535 RGB Pixel LED Mesh Light P55mm Pixel LED Screen 12V Addressable Waterproof Anti-cold UV UCS5603 4096 grey level 20MM 3535 RGB Pixel LED Mesh Light
P55mm Pixel LED Screen 12V Addressable Waterproof Anti-cold UV UCS5603 4096 grey level 20MM 3535 RGB Pixel LED Mesh Light
Part NO SJ-1818-5603-12v
Lighting Source 3PCS SMD3535 RGB LED
Beam Angel 140 degree
Operate Voltage DC12V
Consumption Watt/PC 0.6Watt (max)
Diameter (mm) 20 mm
Pixel pitch 5.5cm, can be customized
IC chip UCS5603
Quantity 20 pcs /string
Waterproof Grade IP66
Cover Transparent
Working temperature -20℃-60℃
Storage temperature -30℃-80℃
Warranty: 2years


SJ-1818-5603-12V


Features

1. Digital led pixel for outdoor application.
2. Each pixel individually control. One led control by one IC (UCS5603). Support numerious color-changing effects.

3. UCS5603 IC has two dataline,  any pixel failure will not affect data transmission, unless two consecutive adjacent pixels are defective.
4. 20pcs per chain with 8 cm space (standard length) but it‘s could customization.

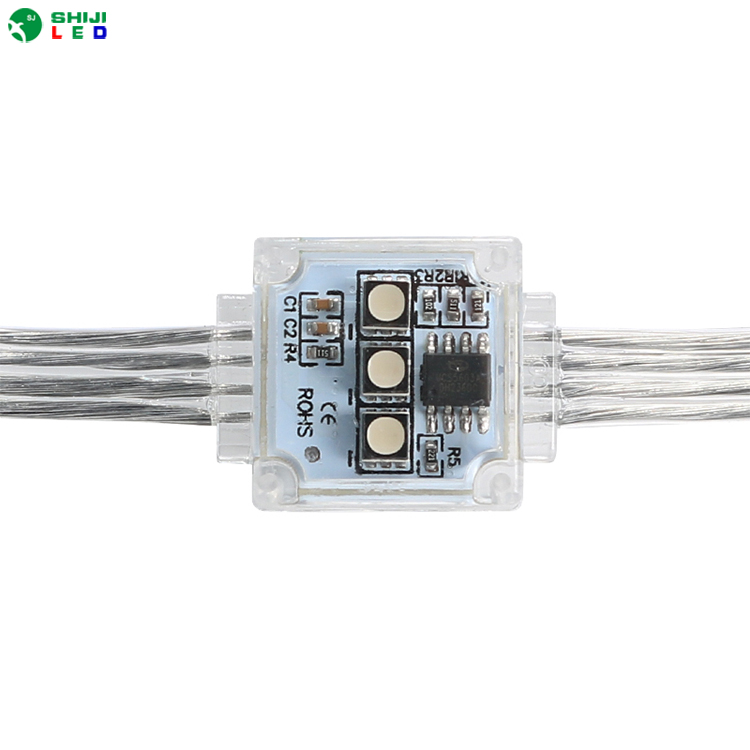

5. There is 3pcs super bright smd3535 RGB LED inside of each lamp.

6. DC12V low voltage,  don‘t use higher than 13V and short circuit,  otherwise the pixel will burnt easily.
7. The JST connectors are non-waterproof, the Male with Pin is Input. But waterproof connectors are available.
8. The whole string light is waterproof IP66.
9. Controller System:SD controller , DMX controller , Artnet and so on.


Parameter

P/N Diameter/mm LED Type IC Type Luminous Angle Voltage Wattage/PCS IP Rate
SJ-1818-5603 50mm / AU 112 140° DC12V / IP67

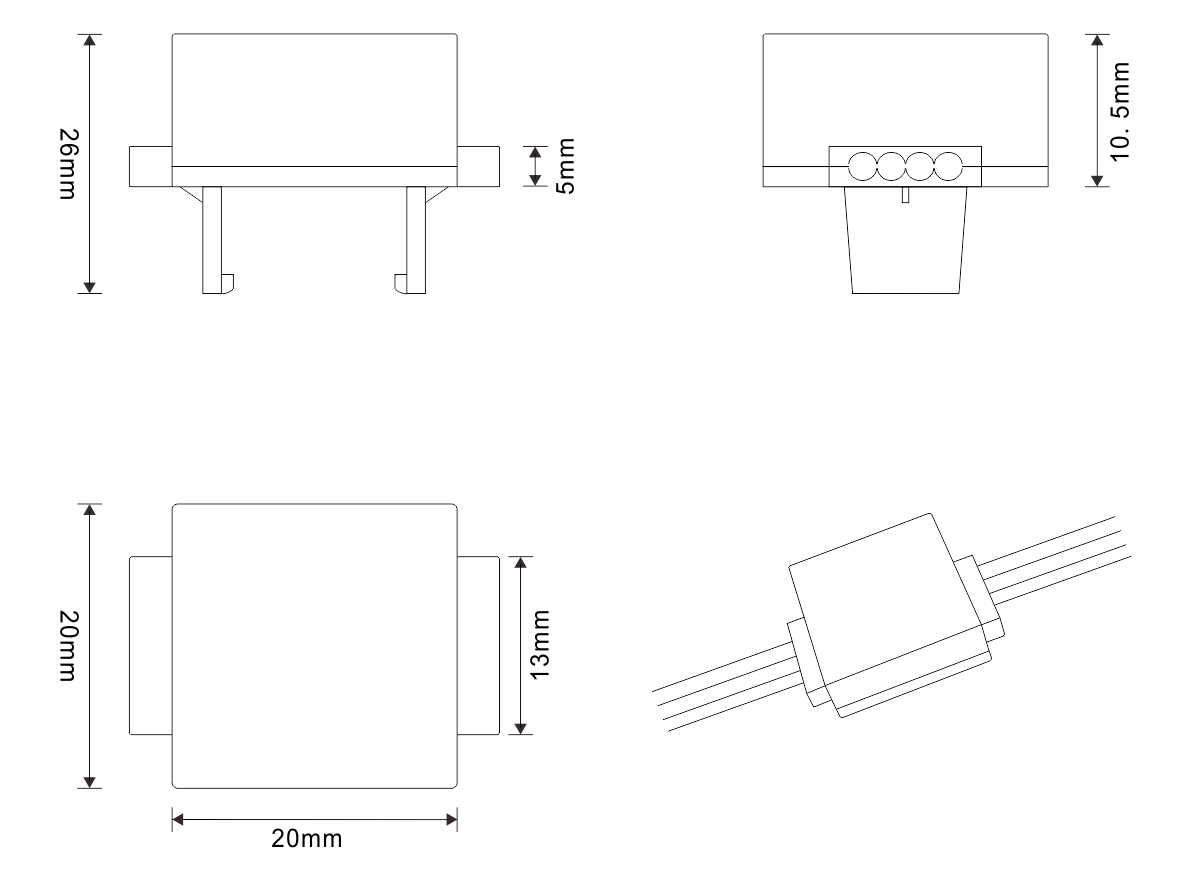

Dimension
