WS2812B 5050 RGB LED WS2812B 5050 RGB LED

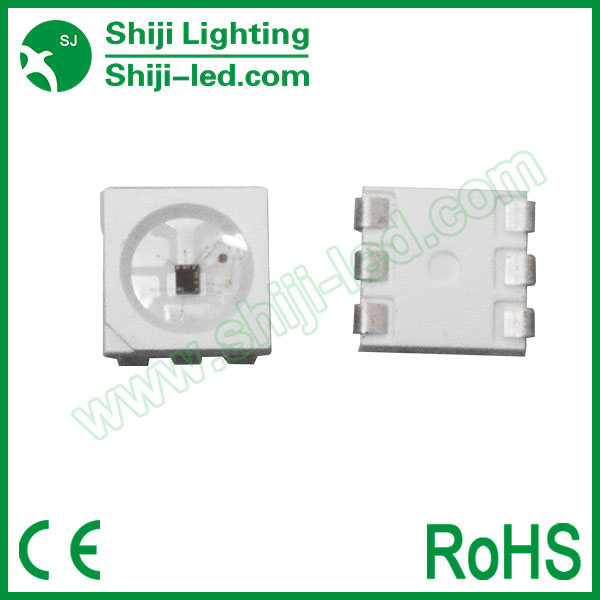

WS2812B 5050 RGB LED
-Intelligent reverse connect protection, the power supply reverse connection does not damage the IC.
-The control circuit and the LED share the only power source.

Feature
-Intelligent reverse connect protection, the power supply reverse connection does not damage the IC.
-The control circuit and the LED share the only power source.
-Control circuit and RGB chip are integrated in a package of 5050 components, form a complete control of pixel point.
- Built-in signal reshaping circuit, after wave reshaping to the next driver, ensure wave-form distortion not accumulate.
-Built-in electric reset circuit and power lost reset circuit.
-Each pixel of the three primary color can achieve 256 brightness display, completed 16777216 color full color display, and scan frequency not less than  400Hz/s.
-Cascading port transmission signal by single line.
-Any two point the distance more than 5m transmission signal without any increase circuit.
-When the refresh rate is 30fps, cascade number are not less than1024 points.
-Send data at speeds of 800Kbps.
-The color of the light were highly consistent, cost-effective.
