Led Strip
SJ-10060-020RGB SJ-10060-020RGB SJ-10060-020RGB SJ-10060-020RGB SJ-10060-020RGB
■. It can be used for KTV decorative lights.
■. It can be used for home lighting decoration.
■. It  can be used to create LED advertising logo.
■. It can be used for stage lighting decoration.
■. It can be used for entertainment lighting decoration.
■. It can be used for shopping mall counter lighting.

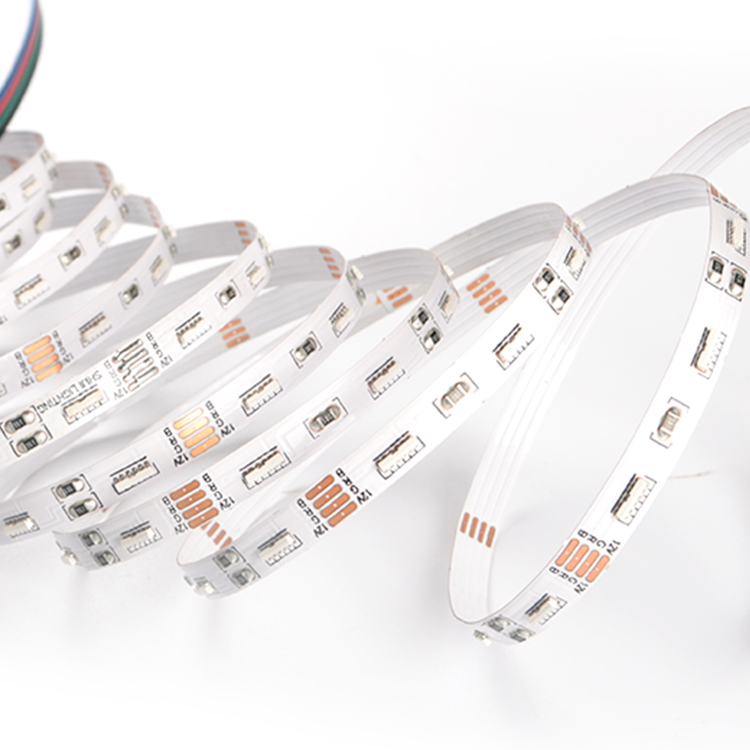

12v 020 rgb side emitting flexible led strip light


1. LED chip--SMD020 R, G, B,side emitting LED chip.
2. Standard Reel Length: 5meter/roll, also can be customized.
3. Cutted:
DC12V: cutted per 3LED, there are cut-lines every 5cm.
DC24V: cutted per 6LED, there are cut-lines every 10cm.
4. Power: the theory power is 19.2W/M, but the really power just about 12W/M.

5. Power supply:
DC12V led strip: you must use a 12V DC power supply to power this strip, do not use higher than 13V,
DC24V led strip: please use 24V DC power supply, or you can destroy the entire strip.

6. Sticky: non-waterproof: with 3M adhesive on back side for sticky;
waterproof: screw+silicon clip, or 3M adhesive back side.
or waterproof silicone tube + silicone glue inside

7. Type: RGB--60LEDs/m, White PCB
8. Color temperature: RGB


P/N Size/mm LED Type led/m Luminous Angle Voltage Wattage/m IP Rate
W5mm * 1mm
rgb smd020 60 leds/m 420 160° DC12v 14.4w IP20


Project case

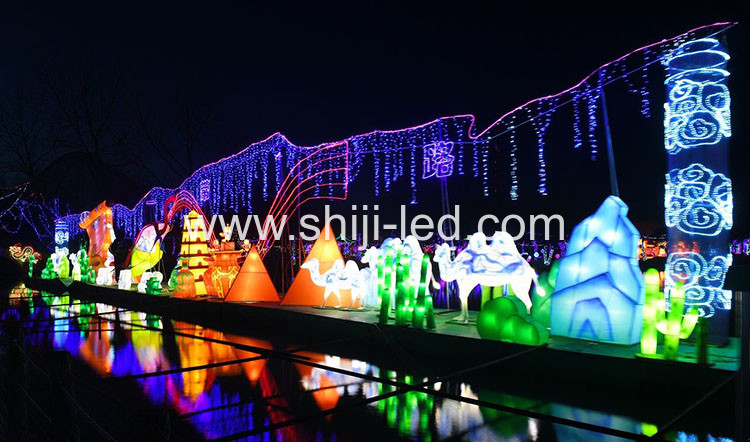

back lights, cabinet lights, edge light, architectural lights for corridor, canopy, archway, lights for path
and contour marking; etc.They can be a good choice for lights for hotels, restaurants, night clubs, coffee / wine bars, shopping malls,
various shops, cinemas, beauty centers, office fronts, even lights for household kitchens or living rooms, etc.
