18mm
18mm APA102C RGB Digital LED light DC5V 18mm APA102C RGB Digital LED light DC5V 18mm APA102C RGB Digital LED light DC5V

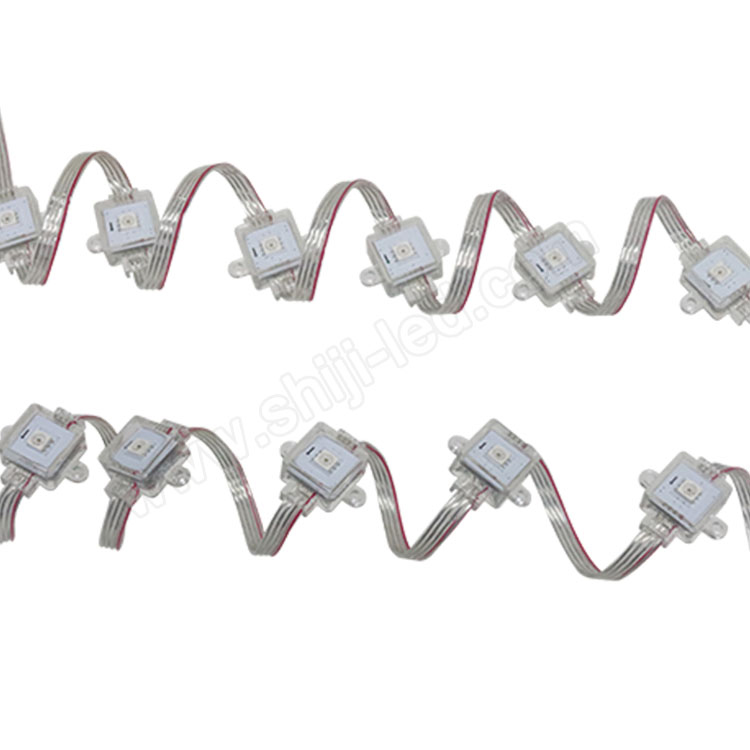

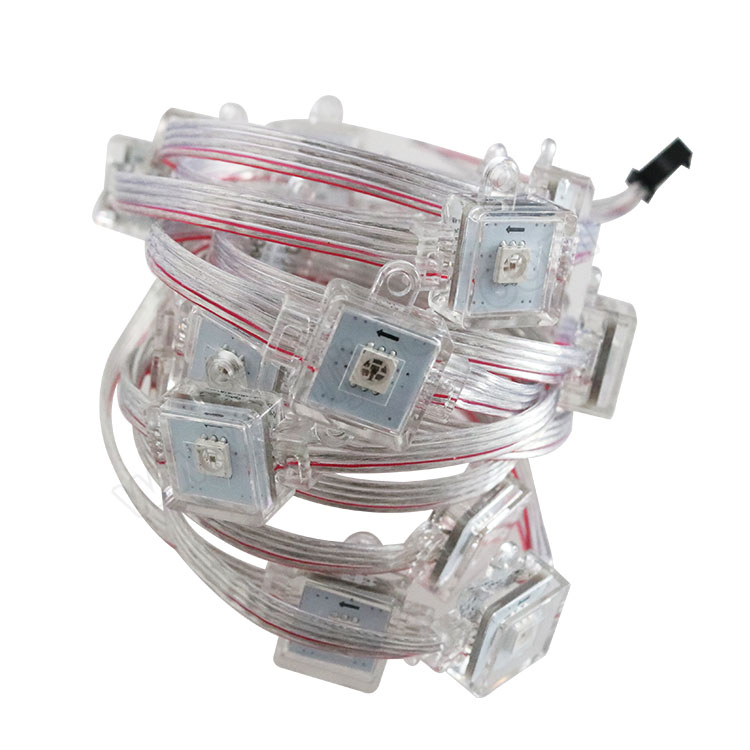

18mm APA102C RGB Digital LED light DC5V
P/N                                       SJ-1818-APA102C
Diameter/mm                       18mm
Hole/mm                              18mm
LED Type                             SMD 5050 RGB
LED/pcs                               1led/pcs
IC Type                                 APA102C
Luminous                             7LM
Angle                                   160°
Voltage                                DC5V
Wattage/pcs                        0.3W/pcs
IP Rate                                IP67




SJ-1818-APA102

Features

1.LED Light Source: Epistar apa102 5050 RGB LED
2.Type:LED Light string
3.Input Voltage(V):DC5V
4.Lamp Power:0.3W
5.Lamp Luminous Flux(mcd):R:700 G:1700 B:600 CRI (Ra>):85

6.Working Temperature(℃):20 - +60
7.Working Lifetime(Hour):50000
8.Lamp Body Material:PVC
9.Certification:CE,RoHS
10.Emitting Color: RGB addressable IC chip: apa102 IC -built-in 5050 RGB LED IP Rate:IP66

11.LED quantity: 1LEDs/pcs，Dimension:18mm*18mm*8mm

12.LED Signal:SPI，View Angle:160
13.Connectors:4PIN JST SM female and male connectors
14.Warrenty:2 years

Parameter

P/N Size/mm LED Type Pixel/PCS Luminous Angle Voltage Wattage/PCS IP Rate
SJ-1818-APA102 18mm*18mm*8mm APA 102C 1 Pixel/PCS 7 160° DC5V 0.3W IP65

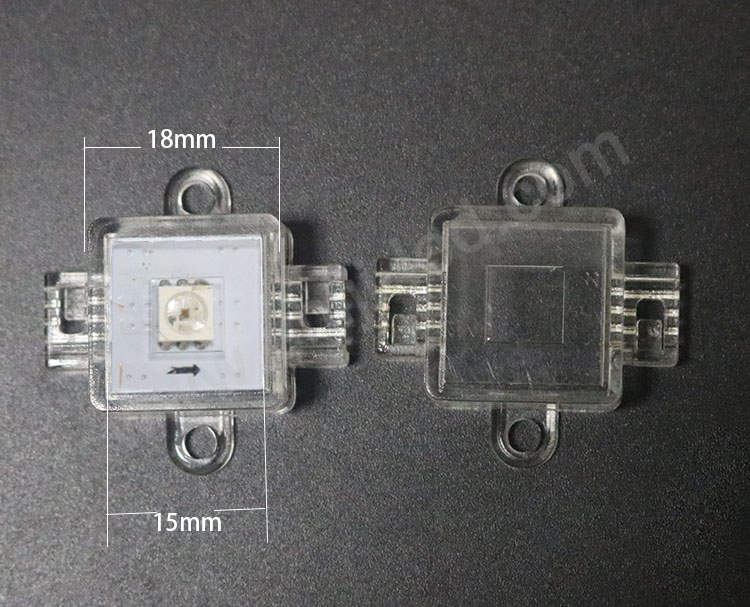

Dimension

Project case

-Led Amusement lamp is widely used in Ferris wheel, park, theme park, carnival, party,

-Super market, hotel, tavern, night club, disco hall, karaoke room, coffee house, bank,

-Meeting room, exhibition hall, exhibition wardrobe, show window, living house,

-Boat lighting, accent lighting, display case lighting, Under cabinet lighting and Art lighting.
