20mm APA102C Amusement LED Pixel Light DC5V Pixel Led String
Model NO. sj-20-sk-5v
IC chip: APA102
Power Consumption :0.3w
Work Voltage DC5V
LED Quantity: 3 PCS SMD 5050
Color :Full color (ICRGB)
Dimension :20mm
Waterproof Grade :IP67
Work Temperature :-40-+60°C
Life-span: 50,000H
Certificate: CE&RoHS
Warranty: 2 years


SJ-20-SK-5V


Features

1) 20mm 1led pcs smd for outdoor amusement park  and funfair ground, 8cm length  between each LED.

2) Low power and consume, DC5V 0.3W.

3) Individually control: 1PCS LED pixle apa102 IC,clear BALL SHAPE cover housing

4) Color: magic color, dream color, rgb pixel leds, color chasing, multiple color. smd5050 rgb led inside, can program to any color or patterns.

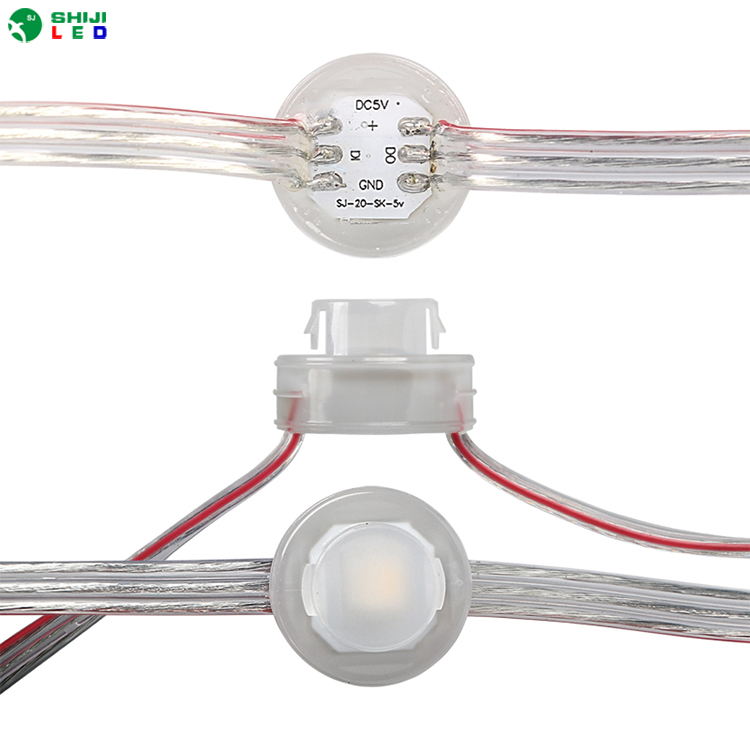

5) Each 30mm 3led pixels amusement bulb apa102 IC have 3pin male and female JST connector. Male connector is signal input, Female connector is signal output. So the bulb can chain to use together as many as possible. Every 20pcs need a power bulb to offer enough voltage.

6) Cover, now available at Milky cover, fog cover, clear cover, transparent cover.

7) Waterproof, all the pixels are seal with glue, and we offer 3pin normal connector IP66 and waterproof connector IP68. IP68 can used for outdoor completely.


Parameter

P/N Diameter/mm LED Type IC Type Luminous Angle Voltage Wattage/PCS IP Rate
SJ-20-sk-5v 20mm / apa102 112 140° DC5V 0.3W IP66


Dimension
