IP67 Waterproof 30 x15mm 12V GS8206 SMD 3535 RGB Addressable Pixel LED Dot Light String For Holiday Decoration
Part NO SJ-3015-8206-12V
Lighting Source  2PCS SMD3535 RGB LED
Beam Angel  360 degree
Operate Voltage  DC12V
Consumption Watt/PC  0.72W (max)
Diameter (mm)  30X15X10mm
Pixel pitch  10cm, can be customized
IC chip  GS8206
Quantity  20PCS/string
Waterproof Grade  IP67
Lifetime  50000H
Working temperature  -20°C - 60°C
Storage temperature  -30°C - 80°C


SJ-3015-8206-12V

Features

1-Digital led pixel string for outdoor & indoor application.

2-Each pixel individually control.  There is a GS8206 IC chip inside each lamp, support numerious color changing effects.

3-GS8206 LED has two data line : D1 and D2,  any pixel failure will not affect datatransfer, unless two consecutive adjacent pixels are defective.

4-20pcs per chain with 8 cm space but it‘s could customization.

5-There is 2pcs super bright smd3535 RGB LED inside of each lamp.

6-The connectors are waterproof 4pin female/male connector, the Male with Pin is Input.

7-The whole string light is waterproof IP67.

8- Controller System:SD controller , DMX controller , Artnet and so on

Parameter
P/N Diameter/mm LED Type IC Type Luminous Angle Voltage Wattage/PCS IP Rate
SJ-3015-8206-12V 30mm*15MM / AU 112 360° DC12V 0.72W IP67

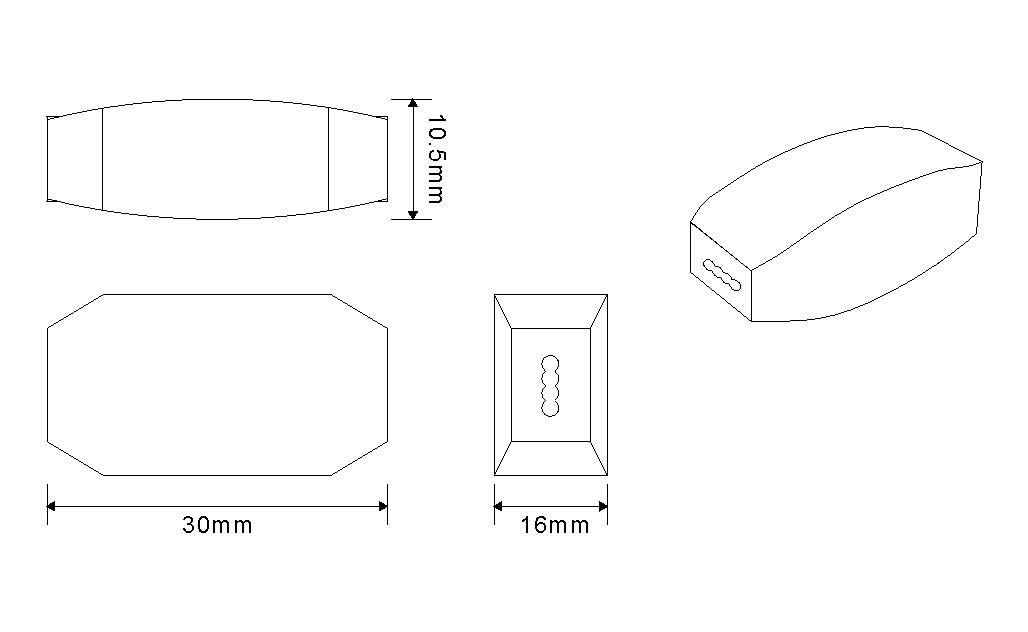

Dimension
