45mm
SJ-456-24V SJ-456-24V SJ-456-24V
SJ-456-24V

Sold in continuous lengths of 20 modules. Male and female plug on continuous lengths of 20 modules.



■. It can be used for KTV decorative lights.


■. It can be used for home lighting decoration.


SJ-456-WS2801

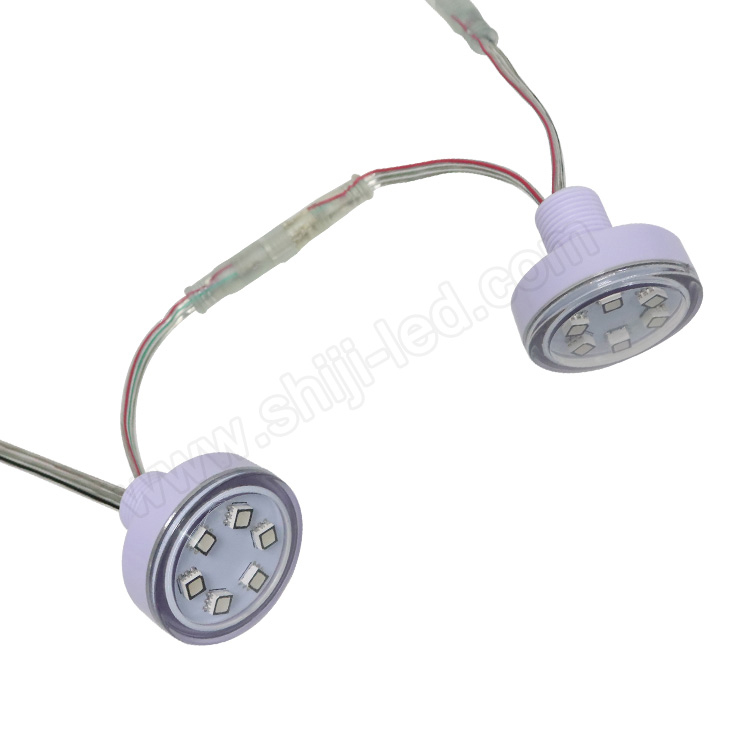

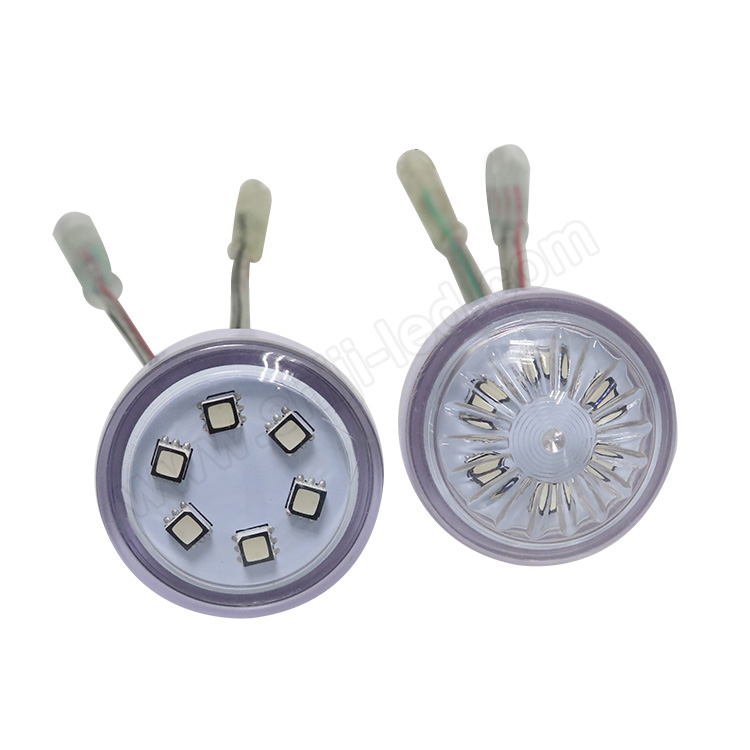

Digital Intelligent module ws2801 dc12v 6LEDs Pixel Ball light


Features

1.Pixel / Smart / Intelligent module with 2801 chip;
2.Please note that these require a smart pixel controller;

3.Each module contains a quantity of three, 5mm x 5mm RGB LEDs (each which has a single red, green and blue LED) for a total of 18 LEDs per module.

4.75" in diameter - excluding mounting tabs and wires.

5.5" in diameter including mounting tabs1" tall including cover, .55" tall without cover Center to center distance between holes is 2.1"4" to 4.5" spacing between modules (side of case);
6.Hard plastic shell with clear waterproof sealant/epoxy over LEDs.

7.Please be aware that the cover/diffuser can be damaged if dropped onto a hard surface.

8.If cover comes off, we recommend gluing using Acetone.

(we also have another version :3pcs SMD 5050 control by LPD6803 or WS2811 chip)


Parameter

P/N Diameter/mm LED Type Pixel/PCS Luminous Angle Voltage Wattage/PCS IP Rate
SJ-456-WS2801 45mm WS2801-smd5050RGB 6 Pixel/m 42 160° DC12v 1.44w IP20/65

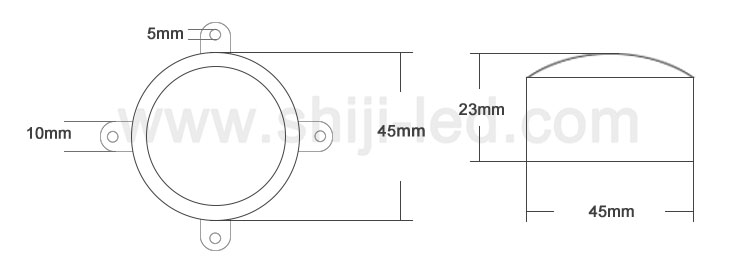

Dimension


Project case

-Led Amusement lamp is widely used in Ferris wheel, park, theme park, carnival, party,

-Super market, hotel, tavern, night club, disco hall, karaoke room, coffee house, bank,

-Meeting room, exhibition hall, exhibition wardrobe, show window, living house,

-Boat lighting, accent lighting, display case lighting, Under cabinet lighting and Art lighting.
