24V 50mm UCS2904 RGBW outdoor led pixel dot string for facade lighting 24V 50mm UCS2904 RGBW outdoor led pixel dot string for facade lighting 24V 50mm UCS2904 RGBW outdoor led pixel dot string for facade lighting 24V 50mm UCS2904 RGBW outdoor led pixel dot string for facade lighting
24V 50mm UCS2904 RGBW outdoor led pixel dot string for facade lighting
SJ-507-LS-RGBW
Size：  50mm diameter
Voltage： DC24V

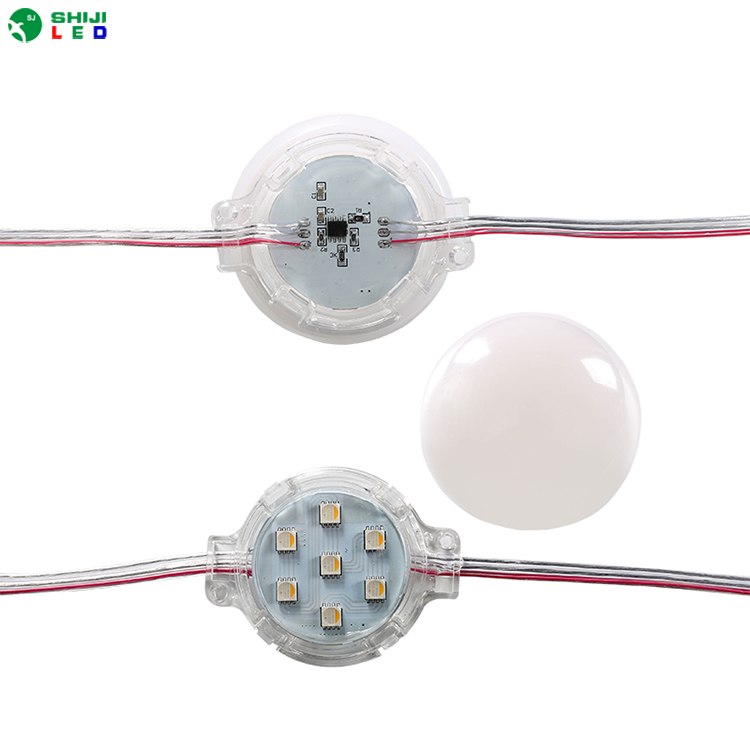

LED chip ： 7pcs SMD 5050 RGBW
IC chip：  UCS2904
Consumption  ：2.24Watts
IP grade ： IP67
Wire length ： regular 10cm, customizable
Warranty: 2years


SJ-507-LS

Features

1. 65mm diameter led balls, Each bulb as one pixel, 24VDC input, 2.24W maximum per pixel

2. UV resist milky Acrylic ball. Environment friendly, no harsh glare and buzzing noise, no flicker.

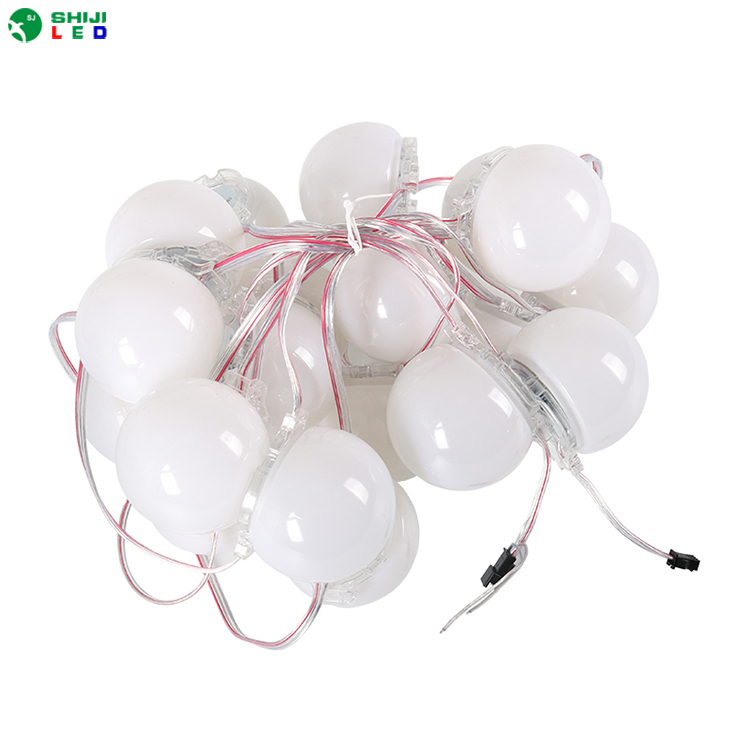

3. 20 pcs pixel bulb in a 4 meter strand, which can be customized if needed. For custom, contact us directly.

4.  The whole string is waterproof

Parameter
P/N Diameter/mm LED Type IC Type Luminous Angle Voltage Wattage/PCS IP Rate
SJ-20-sk-5v 50mm / AU 112 140° DC24V 2.24W IP67

Dimension
