50mm
50mm LED Pixel light 7pcs 5050 RGB DC24V UCS2903 50mm LED Pixel light 7pcs 5050 RGB DC24V UCS2903 50mm LED Pixel light 7pcs 5050 RGB DC24V UCS2903
50mm LED Pixel light 7pcs 5050 RGB DC24V UCS2903
P/N                                     SJ-507-24V
Diameter/mm                       50mm
LED Type                             SMD 5050 RGB
LED/pcs                              7 leds/pcs
IC Type                                UCS 2903
Luminous                             50LM
Angle                                  160°
Voltage                                DC24V
Wattage/pcs                        1.68W/pcs
IP Rate                                IP67




SJ-507-24V


Features

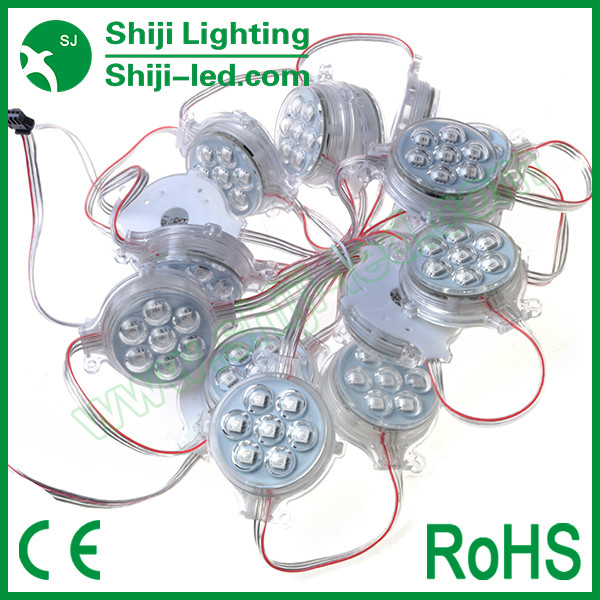

1.This pixel led lights is 7PCS SMD5050 RGB LEDS,DC24V,1.68W per pcs,high brightness.

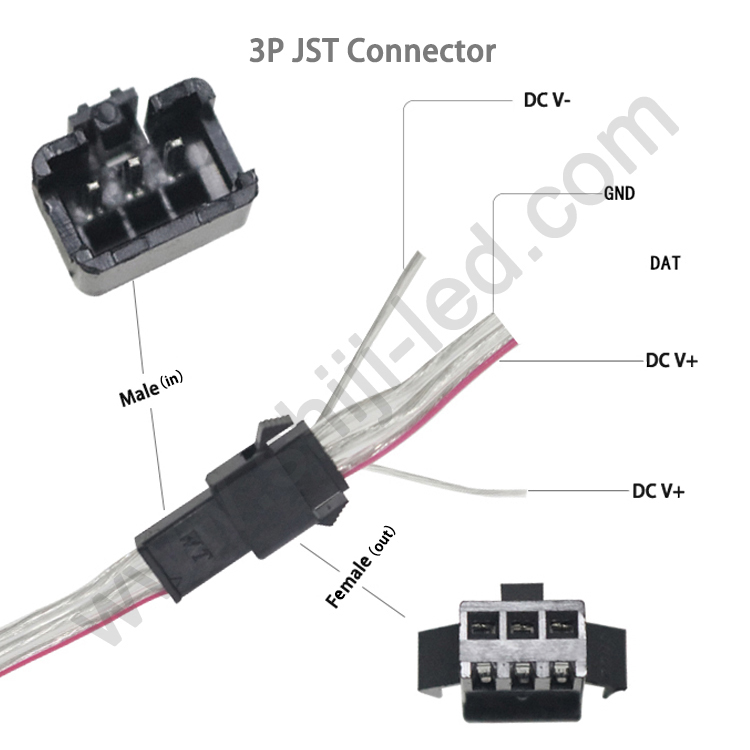

2.1pcs UCS1903ic chip built in, 3Pin JST SM waterproof connectors,SPI signal, support numerous color-changing effects.

3.20pcs/chain,12cm wire length between each LED,long lifespan and lower power consumption.

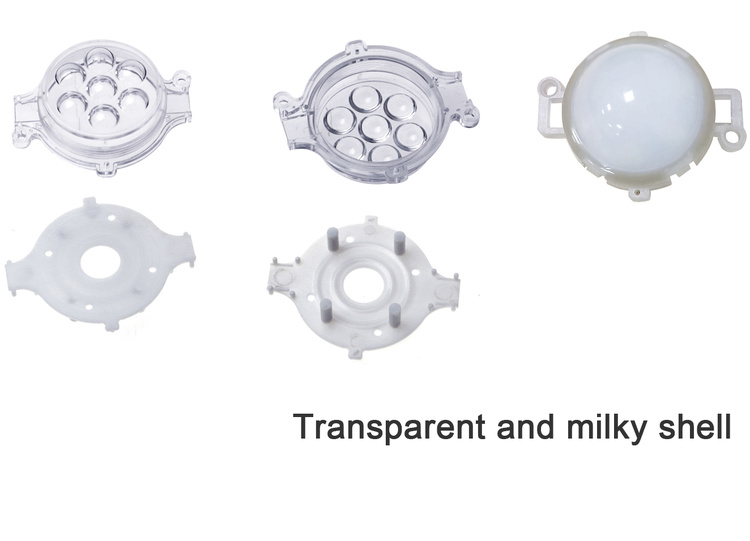

4.Clear lens cover,wonderful virsual effect,many other types cover also customized.

5.Equipped with two screw holes and spiral design,easy to install.

6. Long-term use without the need for replacement.


Parameter

P/N diameter LED Type IC Type Angle Voltage Wattage/PCS IP Rate
SJ-507-24V 50mm SMD 5050 RGB UCS 2903 160° DC24v 1.68w IP20/65

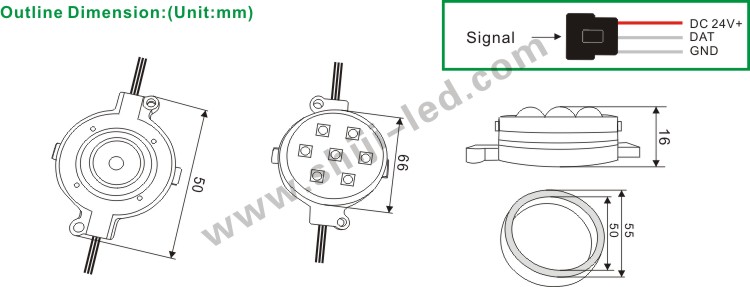

Dimension

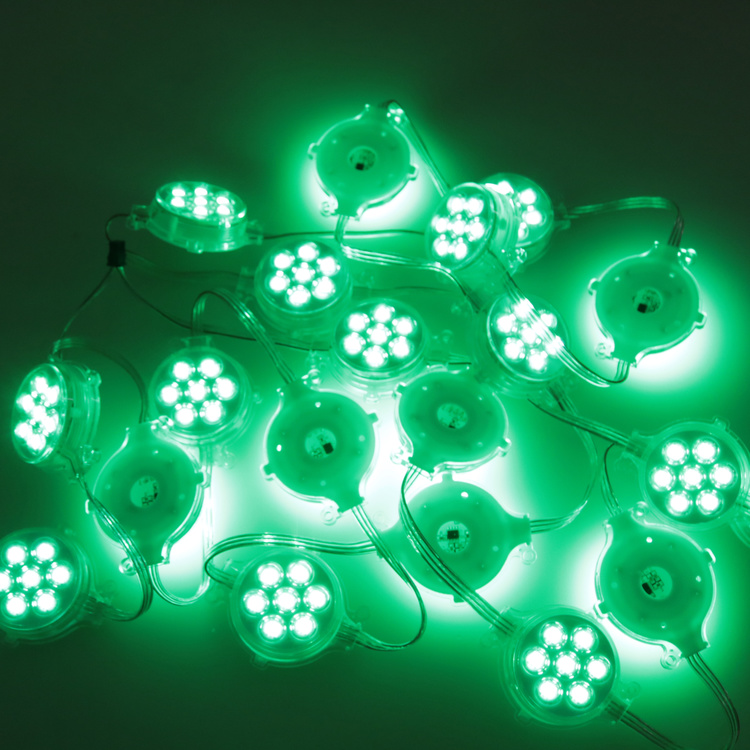

Effect :

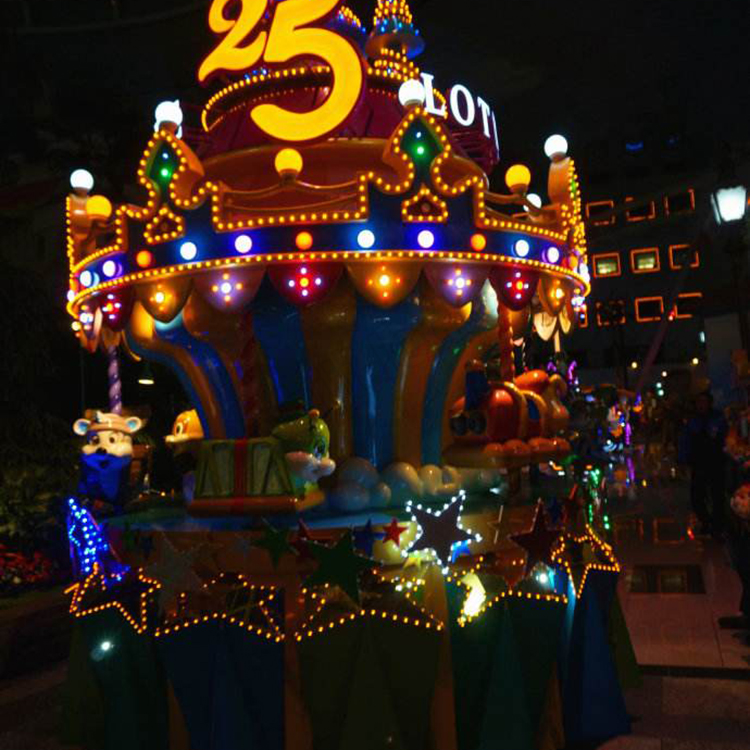

Project case

1.Channel letter backlighting
2.Avertisement sign backlighting
3.Architectural decorative lighting
4.Indoor and outside ilumination
