Amusement Lighting GS8206 24V 60mm 18 RGB Pixel Led Point light
Model No. SJ-6018-GS8206
Lighting Source  18pcs SMD 5050 RGB LED
Beam Angle 140 degree
IC chip GS8206
Operating Voltage DC24V
Consumption Watt/ PC 4.32Watt (Max)
Diameter 60mm
Drill Hole Diamter 19mm
Cover  Transparent / Milky white
Waterproof Grade IP66
Operation Temperature -20°C ~ 60°C
Storage Temperature -30°C ~ 80°C



SJ-6018-GS8206

Features

1) Each lamp individually addressable,  build with IC chip (GS8206),  support numerous color changing effects.

2) GS8206 IC has two data line, any pixel failure will not affect data transmission, unless two continuous adjacent pixels are defective.

3) Combination: PVC shell (thermostability, cold-resistant, resistant to UV) and PCB board, connector cables.

4) Waterproof IP66, with silicon glue waterproof protection.

5) Easy to install, better drill the hole about 19 - 22mm, each piece with a screw for fixing.

6) With features of high brightness, low power dissipation, long lifespan, low Voltage, low decline, colorful.

7) Power supply should use a 24V DC power supply to power this pixel, do not use higher than 25V or it will burn the pixel.

8) Connectors: 4PIN female and male connectors, D, B, DC24V+, GND

Parameter
P/N Diameter/mm LED Type IC Type Luminous Angle Voltage Wattage/PCS IP Rate
SJ-6018-gs8206 60mm / AU 112 140° DC24V 4.32W IP66

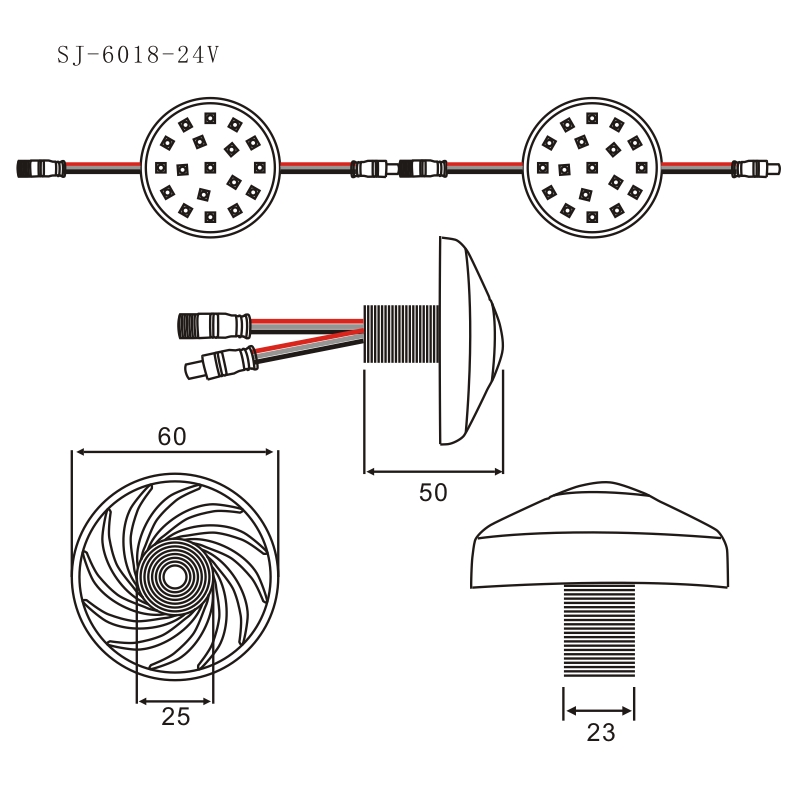

Dimension
