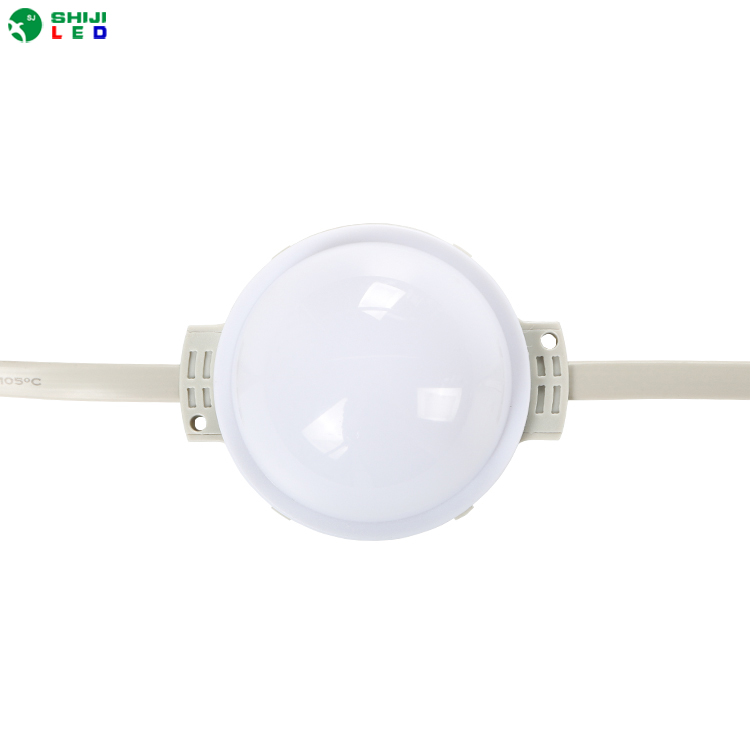

80mm 12LEDs SMD5050RGB DMX Waterproof 24v addressable led pixel module
Part NO SJ-8012-DMX-24V
Lighting Source 12PCS SMD3535 RGB LED
Beam Angel 140 degree
Operate Voltage DC24V
Consumption Watt/PC 2.88Watt (max)
Diameter (mm) 80 mm
Pixel pitch 20cm, can be customized
IC chip UCS2904
Quantity 20pcs/string
Waterproof Grade IP67
Lifetime 50000H
Working temperature -20℃-60℃
Storage temperature -30℃-80℃



SJ-8012-DMX-24V


Features

1-Digital led pixel string for outdoor application;

2-Each pixel individually control; LED pixel DMX512 addressable digital led string.

3-20pcs per chain with 20 cm space (standard length), customization.

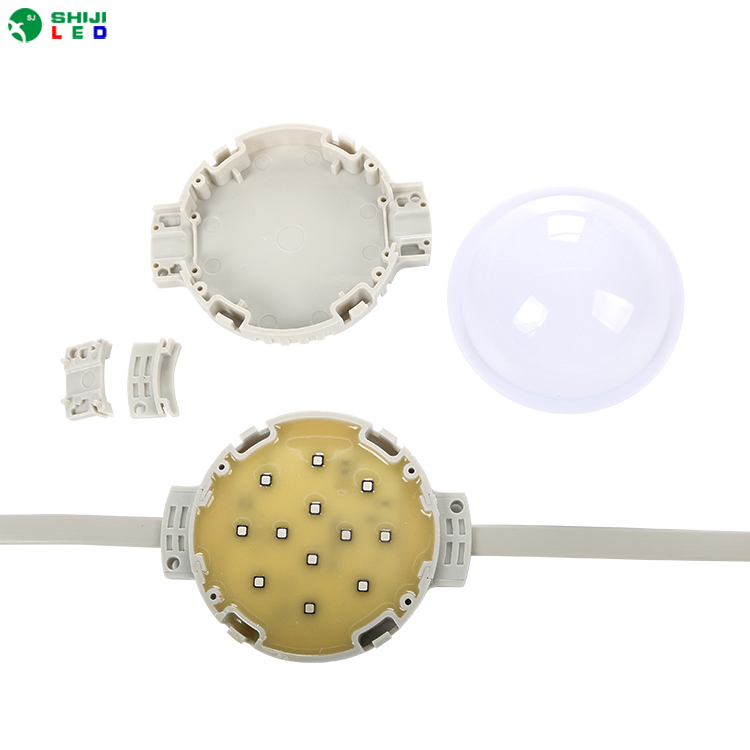

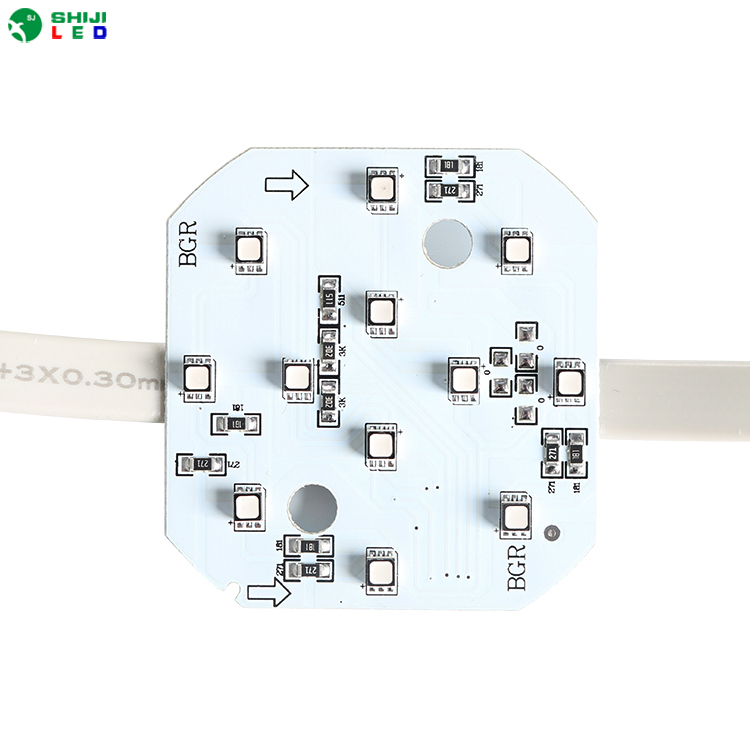

4-There is 12pcs super bright smd3535 RGB LED inside of each lamp.

5-The connectors are waterproof, the Male with Pin is Input.

6-The whole string light is waterproof IP66

7- Controller System:SD controller , DMX controller , Artnet and so on .


Parameter

P/N Diameter/mm LED Type IC Type Luminous Angle Voltage Wattage/PCS IP Rate
SJ-8012-DMX-24V 60mm / AU 112 140° DC24V 2.88W IP66


Dimension
