Hot sale Digital Full Color 16leds 24leds 65m 45m RGB SK6812 Pixel DC5V Circle Led Ring for indoor
Part No. SJ-YQ-16(24)-5V
Voltage DC5V
LED Type  SMD5050 RGB LED
LED QTY 16pcs or 24pcs
Ring Dia Φ45mm/Φ65 (outer dia)Φ32mm/Φ52 (inside dia)
Waterproof Rate IP20
Color
changeable
Warranty
2years
Operation Temperature -20°C ~ 60°C
Storage Temperature -30°C ~ 80°C



SJ-YQ-16(24)-5V

Features

- This is one ring type with SK6812 chip; 2- LED Qty can be 16pcs and 24pcs;

3- Outer diameter for 16leds is Φ45mm, inside diameter is Φ32mm

4- Outer diameter for 24leds is Φ65mm, inside diameter is Φ52mm

5- The connector type is JST SM 3pin non-waterproof

Parameter

P/N Diameter/mm LED Type IC Type Luminous Angle Voltage Wattage/PCS IP Rate
 SJ-YQ-16(24)-5V  / / sk6812 / 180° DC5V w IP20

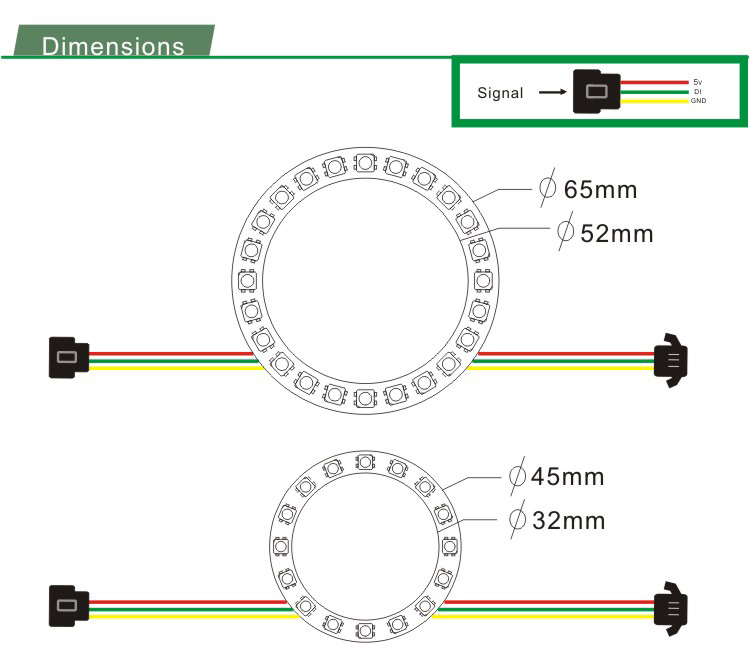

Dimension
