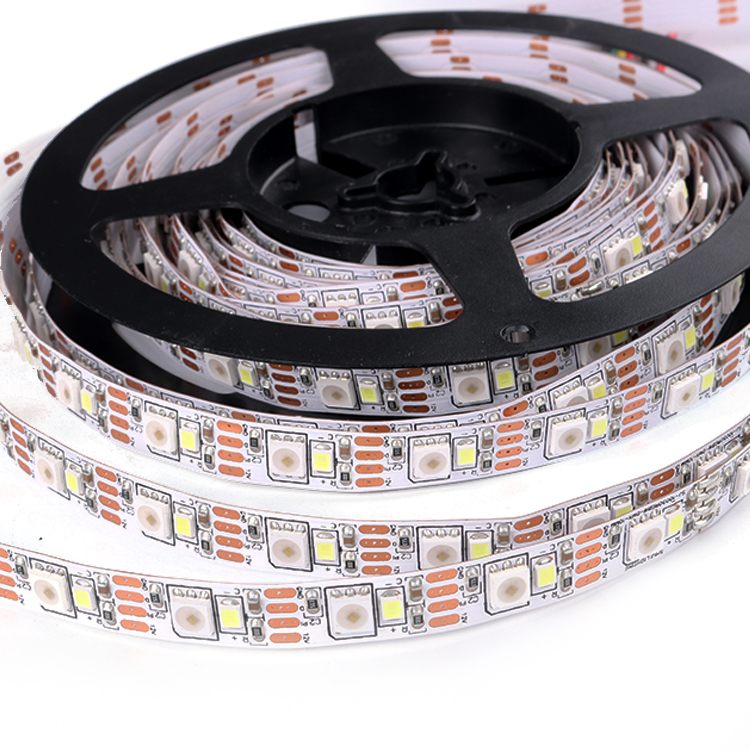

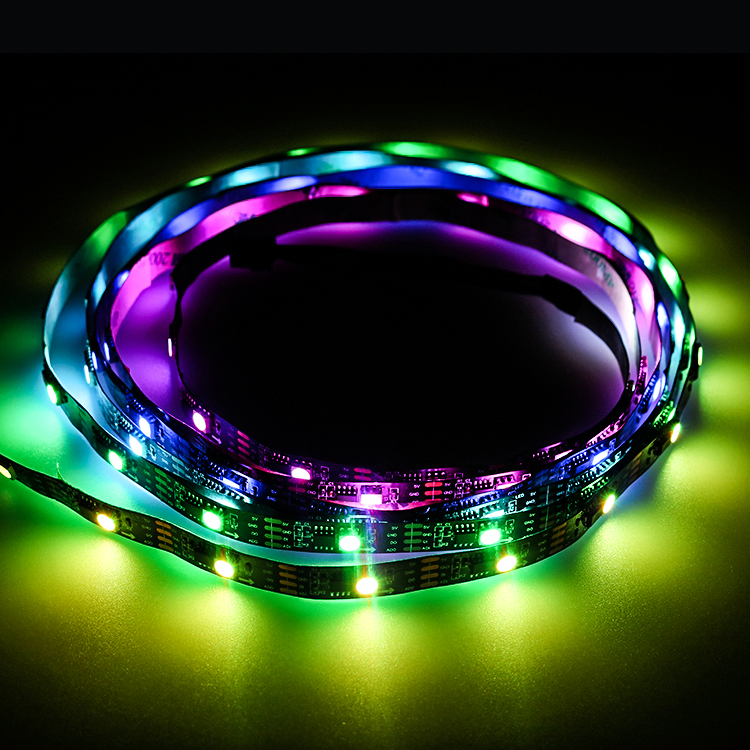

IP68 Addressable Neon Strip Programmable RGB DMX Pixel LED Strip Light
1)Input Voltage: DC5V/ 12V / 24V
2)LED Resource: SMD 5050 RGB/ RGBW LED
3)Beam Angel: 120 Degree
4)IC Type: DMX UCS512B/UCS512C/ UCS512H4L
5)IP Ranking: IP20/IP65(Silicon tube)/ IP67/IP68
6)LEDs (Pixel)/M: 30 Pixels/ 8Pixels/ 10Pixels/ 20 Pixels /m
7)PCB Color: Black/White
8)PCB Width: 10mm / 12mm
9)Life Span: ≥50000h
10)Warranty(Year): 2-Year

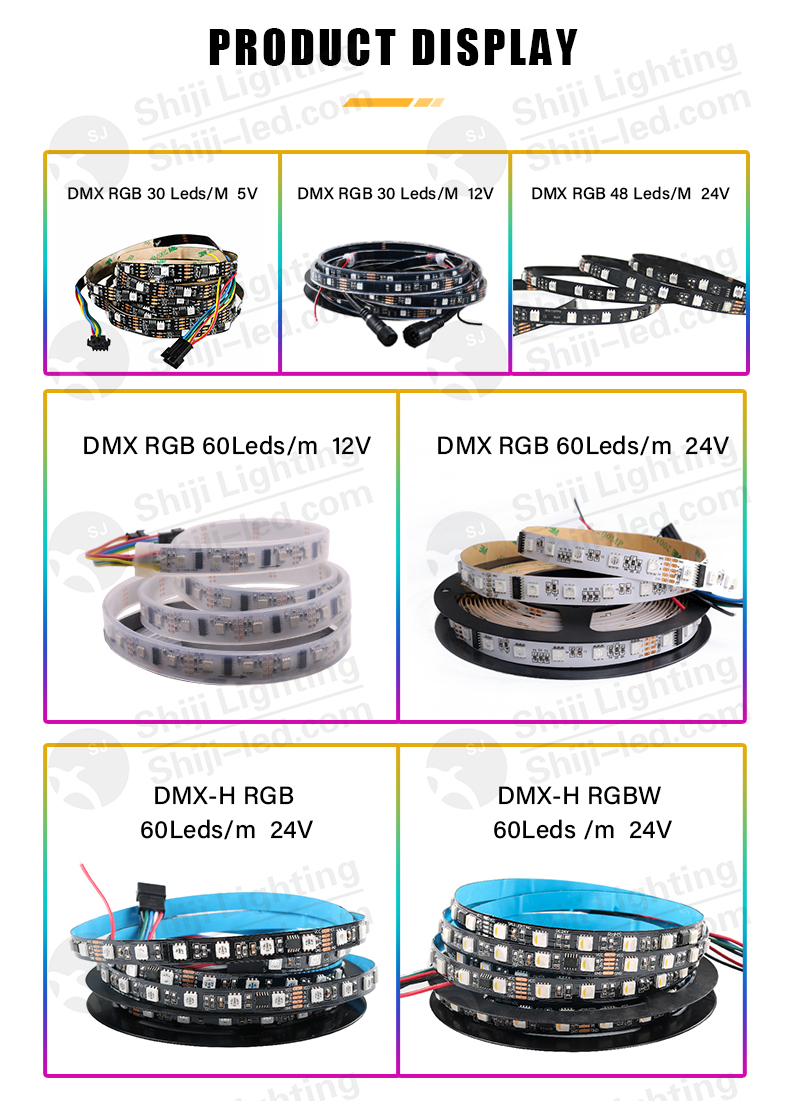

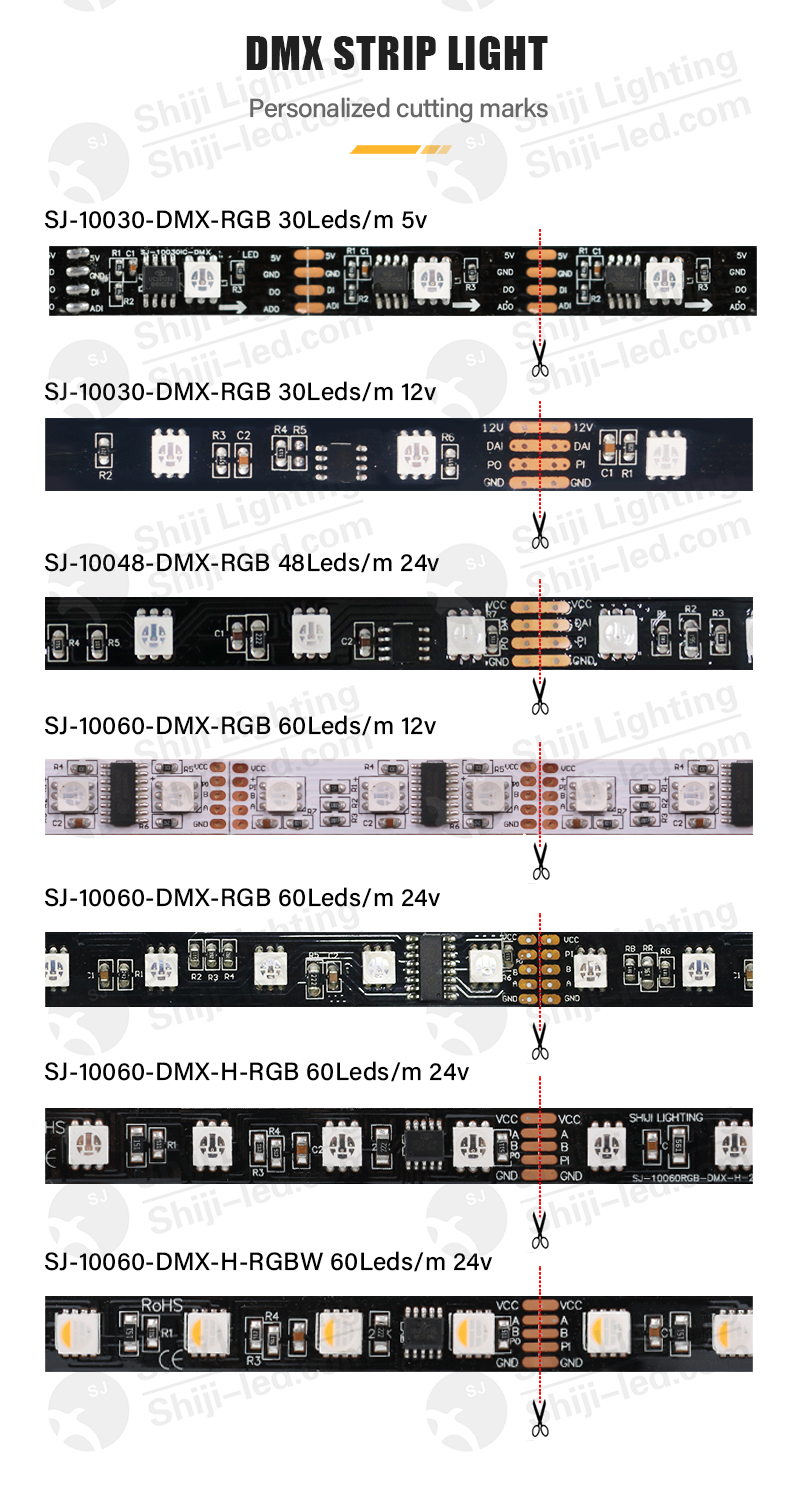

Part NO SJ-10030-DMX-RGB-5V/12V
SJ-10048-DMX-RGB-24V
SJ-10060-DMX-RGB-12V/24V
SJ-10060-DMX-H-RGB
SJ-10060-DMX-H-RGBW-24V

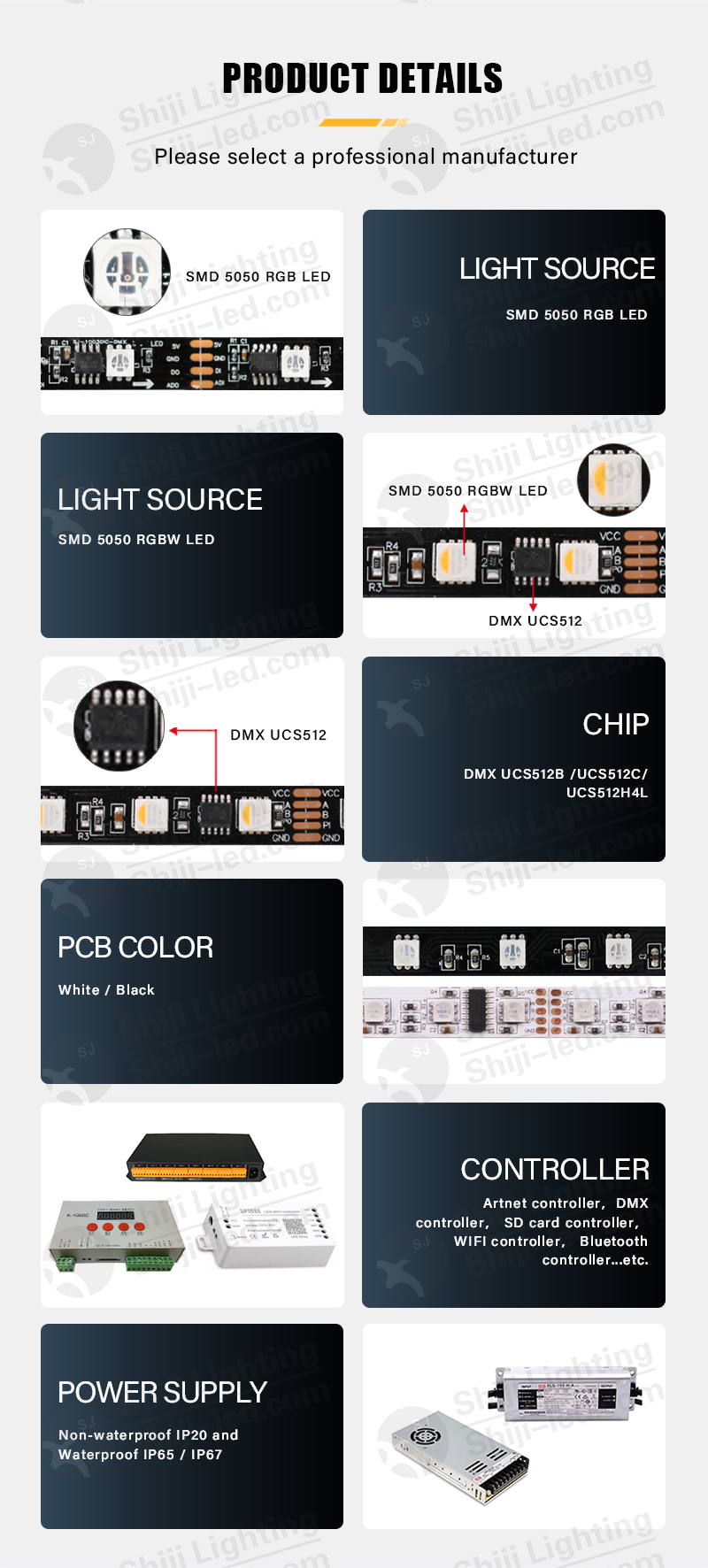

Lighting Source SMD 5050 RGB/ RGBW LED
Beam Angel 120 degree
Operate Voltage DC5V/ 12V / 24V
Consumption Watt/M 9W /11.52W/14.4W/19.2 Watt (max)

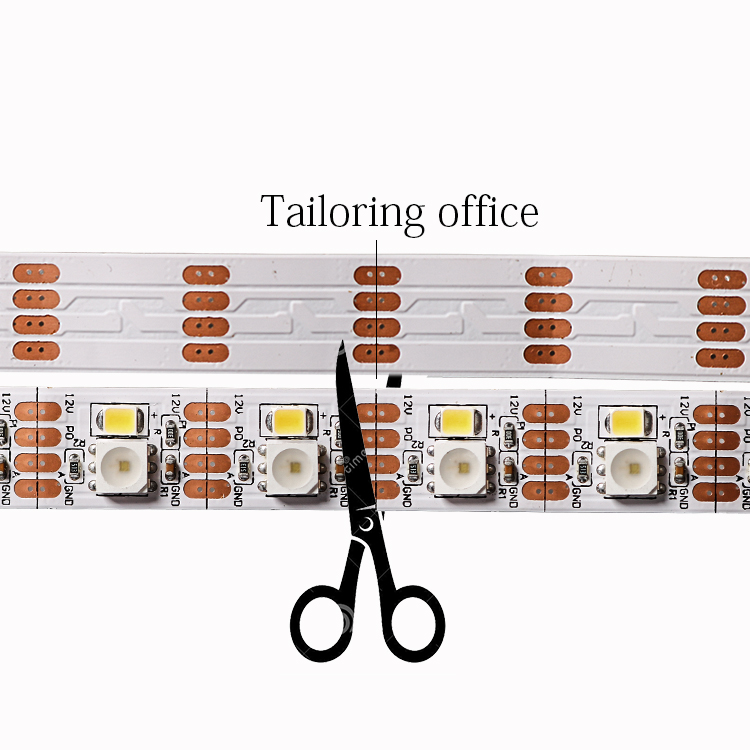

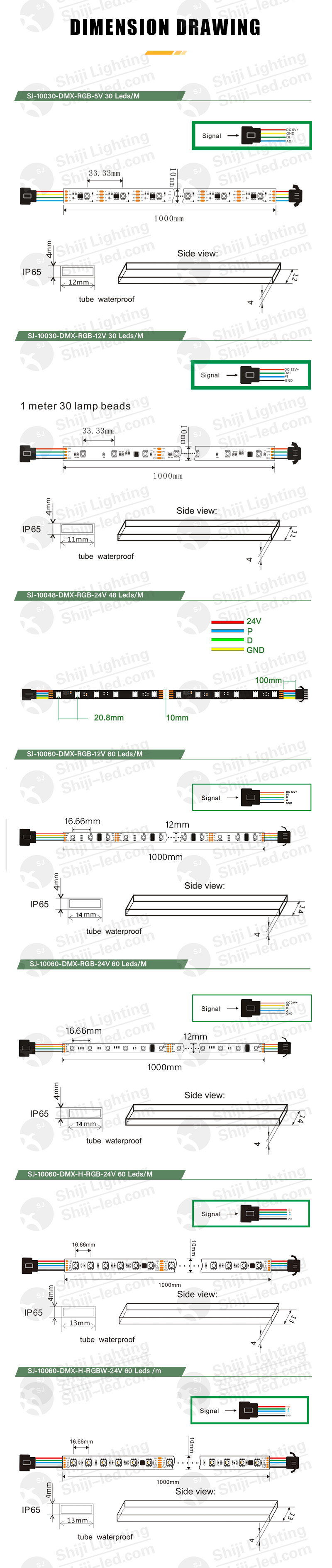

Pixel Pitch (mm) Cuttable every 33.3mm /125mm /50mm /100mm
LEDs (Pixel)/M 30 Pixels/ 8Pixels/ 10Pixels/ 20 Pixels /m

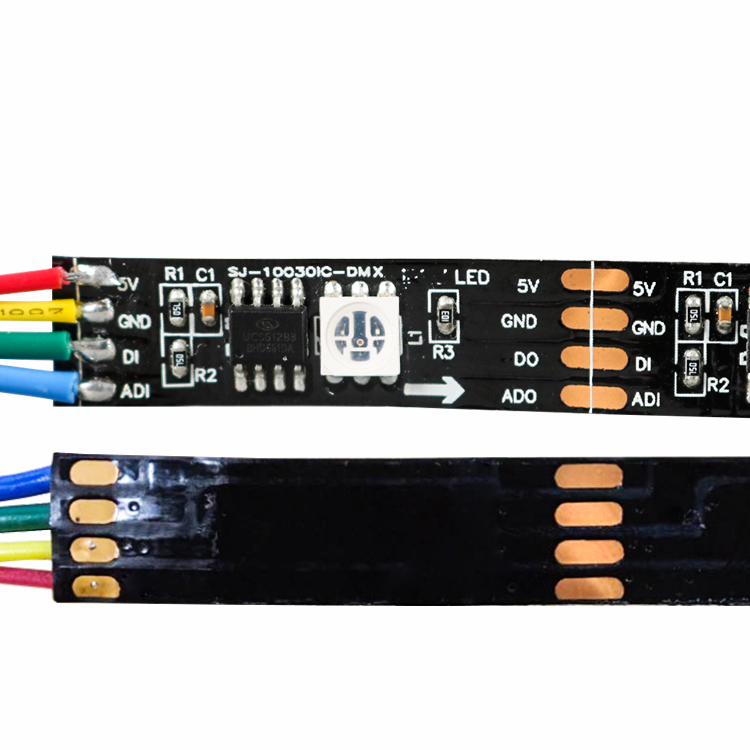

IC chip DMX UCS512B/UCS512C/ UCS512H4L
PCB Color Black/white
PCB Width 10mm / 12mm

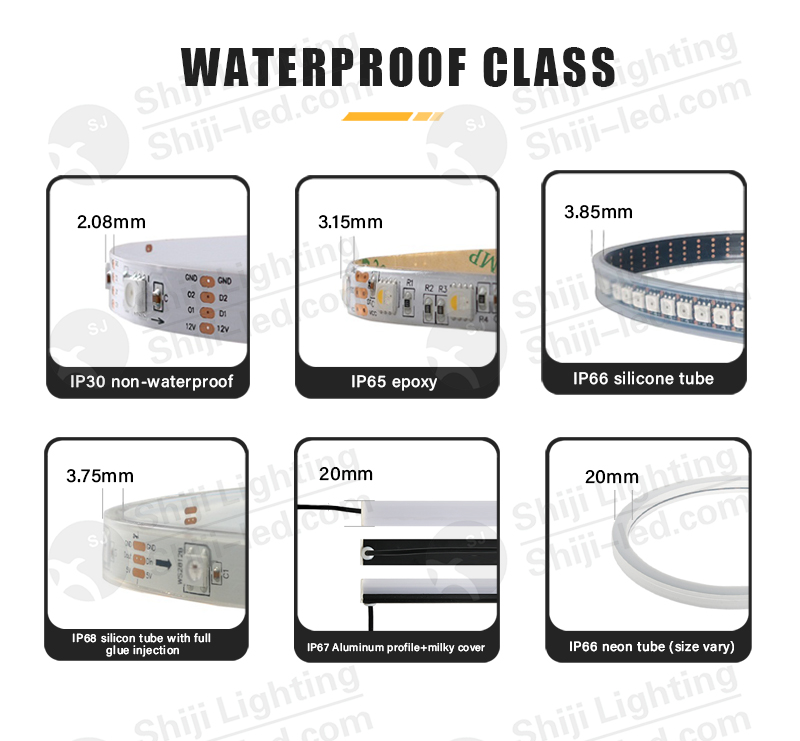

Waterproof Grade IP20/IP65(Silicon tube)/ IP67/IP68
