LED Bar
Led Wall Washer Strip 24V 16W high lumens 48LEDs/M billboard led signage lighting led neon flexible strips Led Wall Washer Strip 24V 16W high lumens 48LEDs/M billboard led signage lighting led neon flexible strips Led Wall Washer Strip 24V 16W high lumens 48LEDs/M billboard led signage lighting led neon flexible strips Led Wall Washer Strip 24V 16W high lumens 48LEDs/M billboard led signage lighting led neon flexible strips Led Wall Washer Strip 24V 16W high lumens 48LEDs/M billboard led signage lighting led neon flexible strips Led Wall Washer Strip 24V 16W high lumens 48LEDs/M billboard led signage lighting led neon flexible strips
Led Wall Washer Strip 24V 16W high lumens 48LEDs/M billboard led signage lighting led neon flexible strips

SJ-10048-1616-2835-24V

Model:SJ-10048-1616-2835-24V
Beam Angle :120 degree
Light Source: SMD 2835 BGR LED
Size : 16mm x 16mm
Lamp body material : Silicone, flexible
Cuttable: 41.66mm
LED QTY/ Meter: 48 Leds/m
Input Voltage: DC24V
Max Power :16W/m
Protection: IP67
Operation Temperature -20°C ~ 60°C
Storage Temperature -30°C ~ 80°C



SJ-10048-1616-2835-24V

Features

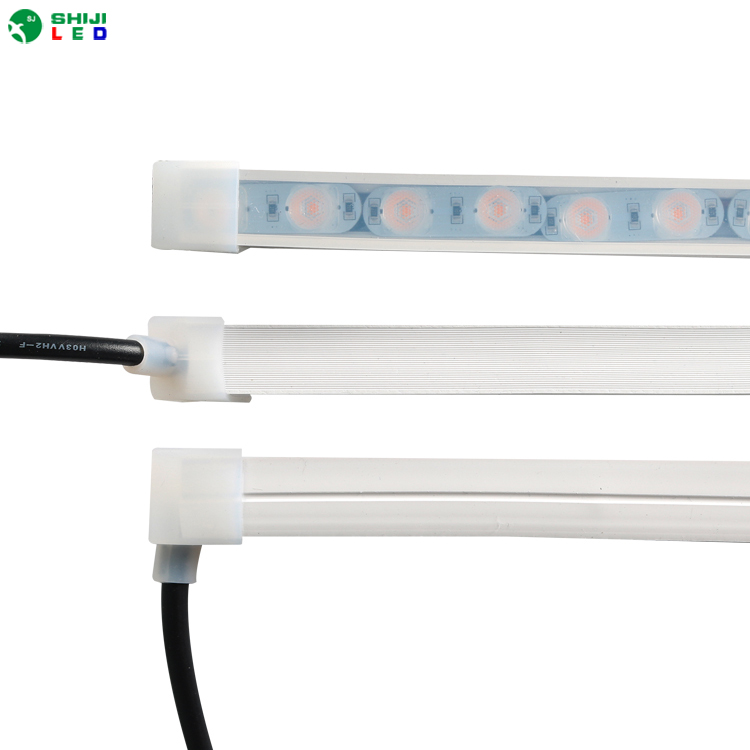

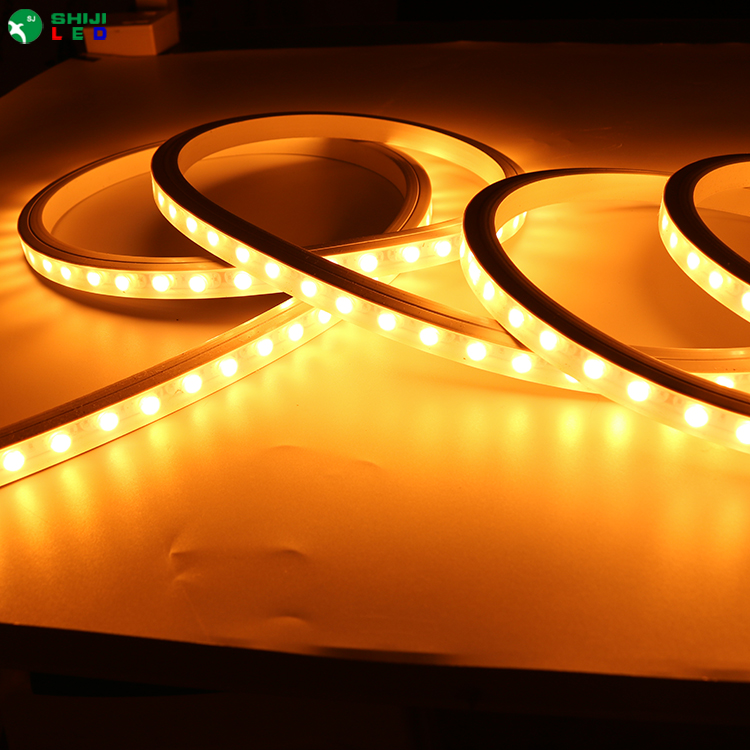

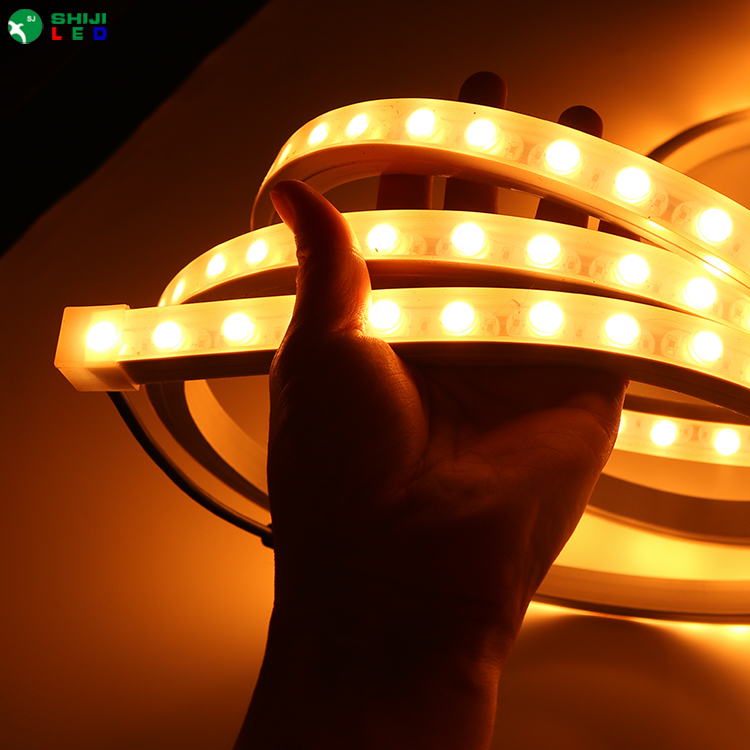

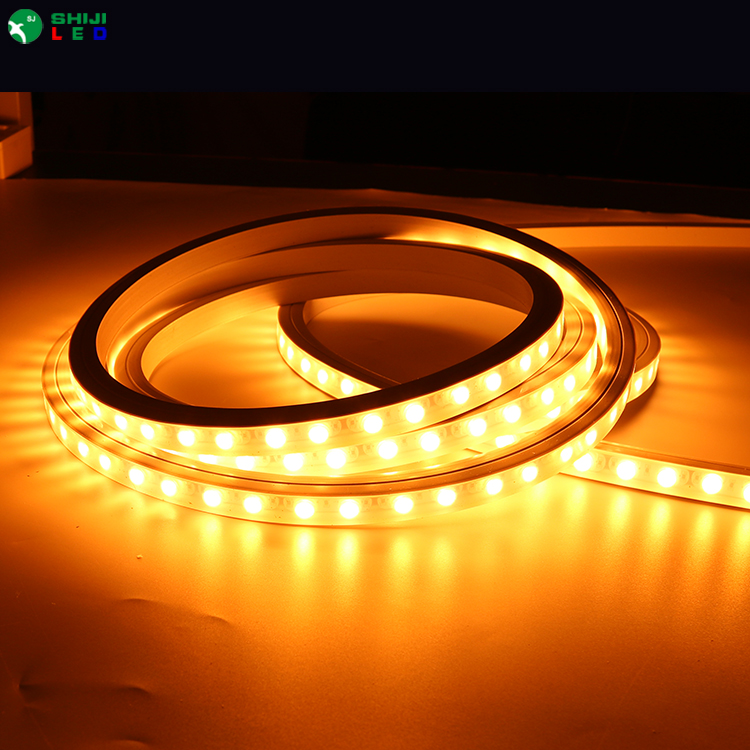

1. Flexible neon LED wall washer strip for outdoor&indoor application. Strong silicon body, bendable in S shape.

2. Single color optional : Red/Yellow/ Green/ Blue/ warm white 2700K ~ 3200K /  neutral white 4000K~4500K / cold white  6000K~ 6500K.

3. 48pcs SMD 2835 Led per meter.

4. 16Watt per meter.

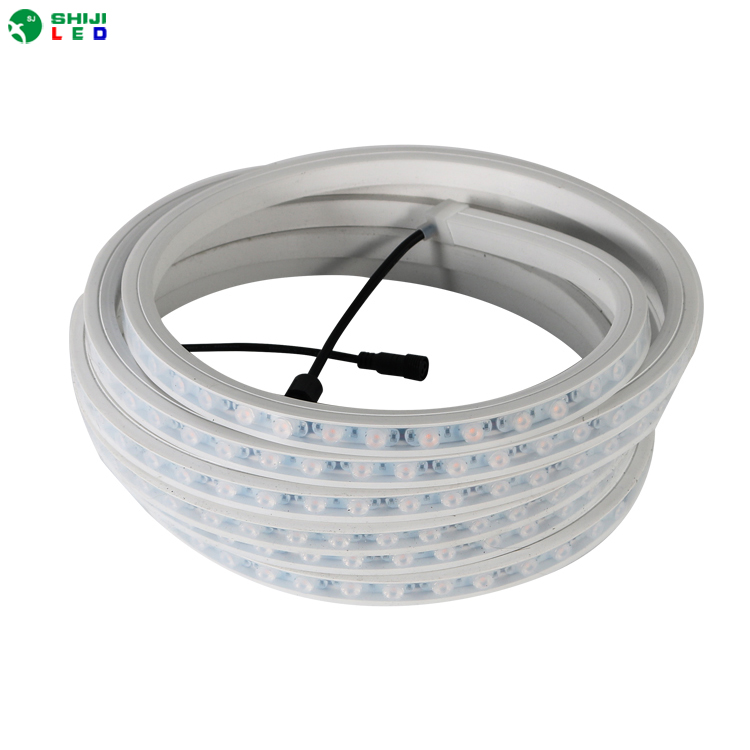

5. DC24V operating , 5meters per roll and can be customized.

6. Each roll with 2Pin waterproof connector on both end for power injection.

7. Flexible silicone neon strip. Every 2Leds can be cut ,there is cut lines every 41.66mm.

8. White PCB and black PCB optional.

9. Easily install with alumin clips & screws.  2pcs clips & screws per meter.

Parameter
P/N Diameter/mm LED Type IC Type Luminous Angle Voltage Wattage/PCS IP Rate
SJ-10048-1616-2835-24V 16*16mm 2835 DC 112 140° DC24V 16W IP67

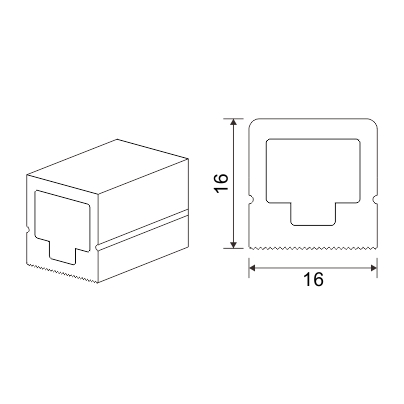

Dimension


Application
