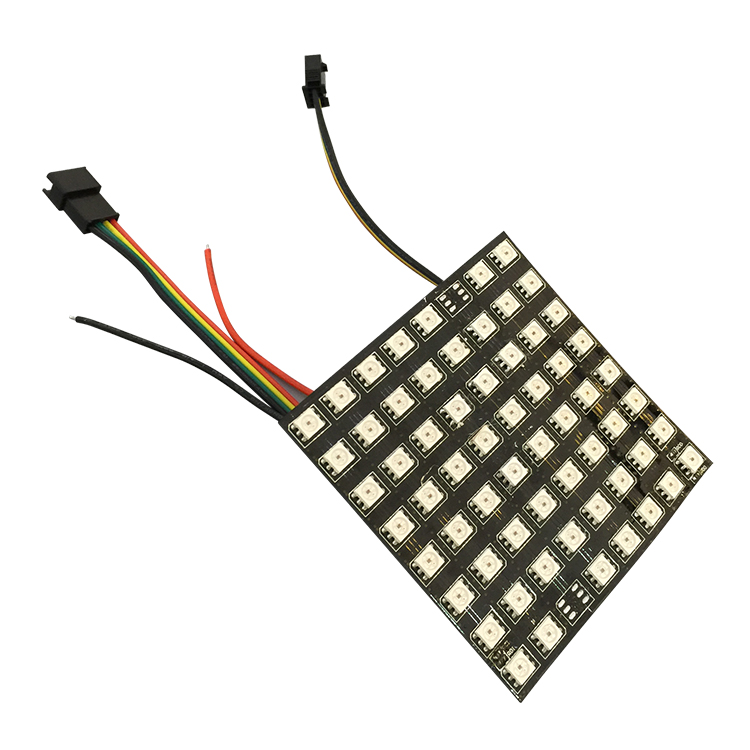

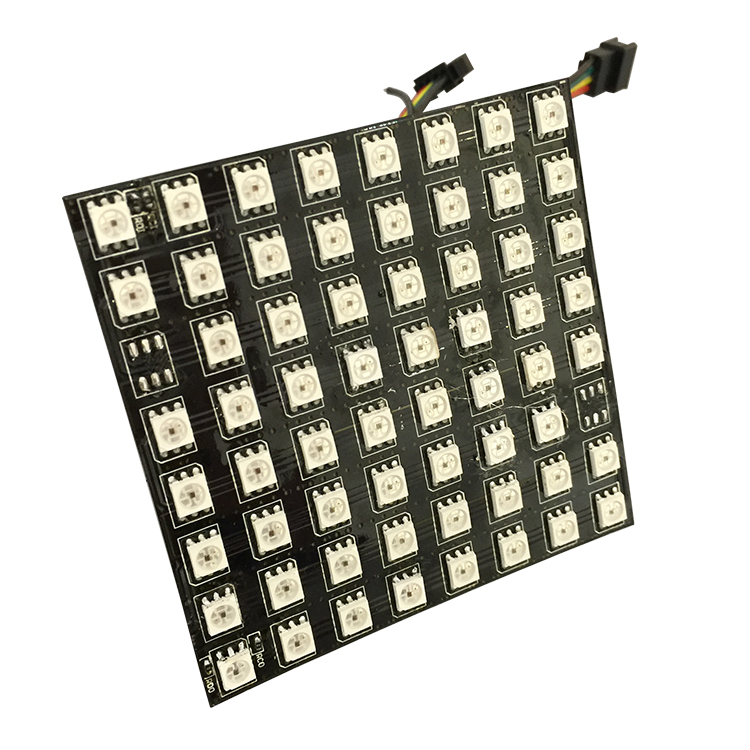

SJ-APA102C-50-64


APA102C LED Matrix 256 pixels (8*32)
DC5V 76.8W APA102 chip



■. It can be used for KTV decorative lights.


■. It can be used for home lighting decoration.


SJ-APA102C-50-64

Digital APA102C LED Matrix 256 pixels (8*32)


Features

1.There‘s a new LED matrix is a rectangle design in Pixel LED!
8*32 Pixel APA102C LEDs use a 2-wire SPI,it can  push data much faster than with the WS2812B 800 KHz protocol and there‘s no specific timing required. it‘s  also have much higher PWM refresh rates.
2.This  SMD 5050 LEDs is GRB color sequence ,not RGB sequence !!!
with an embedded microcontroller inside the LED. You can set the color/brightness of each LED to 24-bit color (8 bits each red green and blue). Each LED acts like a shift register, reading incoming color data on the input pins, and then shifting the previous color data out on the output pin. By sending a long string of data, you can control an unlimited LEDs
3.These LEDs have 2 wires (input and output) for  clock  and one data pin.
Because the clock and data is seperated, you can use any microcontroller or microprocessor, including Arduino, Raspberry Pi, BeagleBone, Propeller to control it
PWM rate. You only have to set the 24-bit color data for each pixel LED once, and then the LED+built-in-chip will handle the PWMing of the red, green and blue.
On our WS2812B Matrix, this PWM rate happens 400 Hz, which works well but is noticably at lower brightnesses and if the strip is moving in any way.
have a 20 KHz PWM rate, even if you set any color or animation, there is no pixelation
4.The Matrix is made of flexible PCB material,Non-waterproof ,for indoor use only, 2 Ounce copper PCB and black color you can also connect each matrix to together to make them as large as a P10 LED screen, make sure gave them enough Power , each matrix 256 pcs LEDs request about 8A.
These matrix comes in 1pcs per bag, on the back side, soldered a pair of  4-pin JST SM connector, it‘s makes easy to link to next matrixthere‘s a new LED matrix is a rectangle design in iPixel LED!
8*32 Pixel APA102C LEDs use a 2-wire SPI,it can  push data much faster than with the WS2812B 800 KHz protocol and there‘s no specific timing required. it‘s  also have much higher PWM refresh rates.


Parameter

P/N Size/cm LED Type Pixel/m Luminous Angle Voltage Wattage/m IP Rate
SJ-APA102C-50-64 8*8 apa102c 64  Pixel/m 448 260° DC5v 19.2w IP20/65

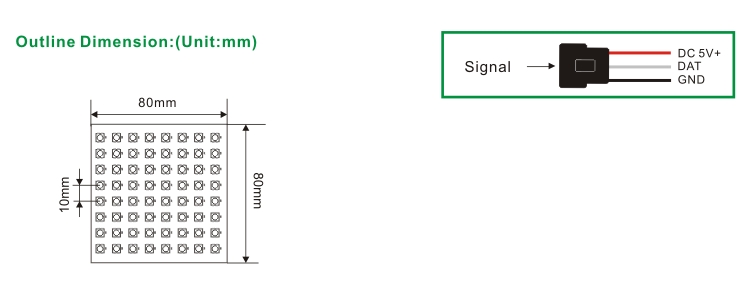

Dimension


Project case

LED shirts, Promotion, Fans props, Fashion show, Car show, Conference, Dancer suit, Advertising doll, Shop product showcase, Electronic toys
Safety labeling
Etc.
