LED Pixel Light
Automatic Program Light LED Pixel AC24V Automatic Program Light LED Pixel AC24V Automatic Program Light LED Pixel AC24V Automatic Program Light LED Pixel AC24V
Automatic Program Light LED Pixel AC24V
P/N                                       SJ-6016-AU-AC24V
Diameter/mm                       60mm
Hole/mm                              20mm
LED Type                             SMD 5050 RGB
LED/pcs                              16leds/pcs
IC Type                                Automatic control（1-16）
Luminous                            110LM
Angle                                  160°
Voltage                                AC24V
Wattage/pcs                        3.84W/pcs
IP Rate                                IP67




SJ-6016-AU-AC24V

Features

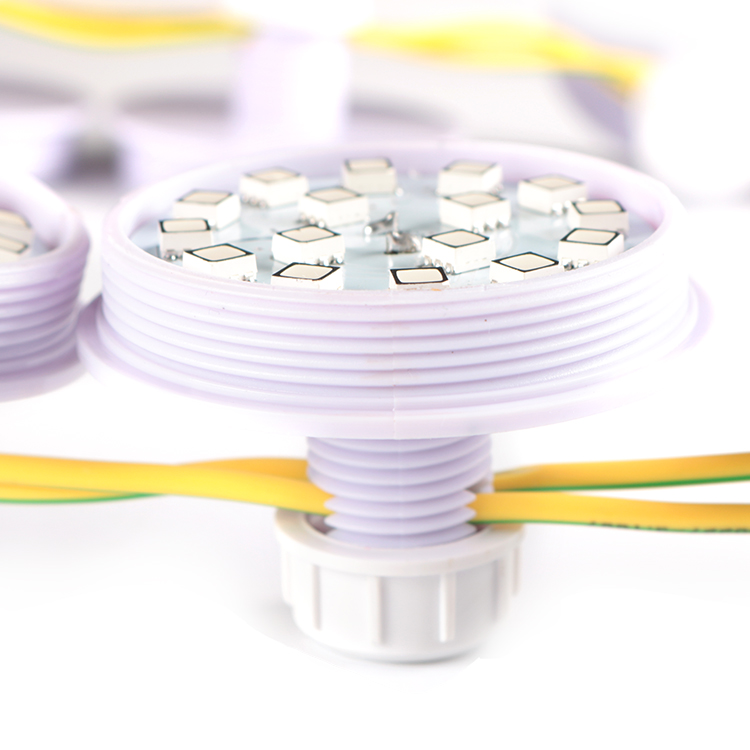

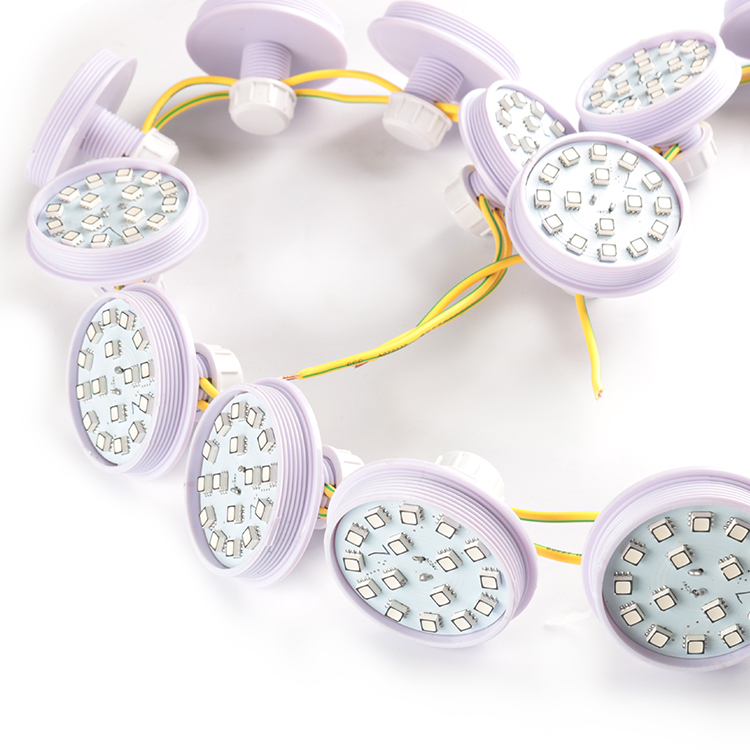

1. This is a combination of plastic (heat, cold, UV resistant) housing and PCB board, containing 16pcs 5050 RGB SMD LEDs.

2. Each LED is independent, AC24V voltage input.

3. Automatic control, built-in 1 to 16 programs.

4. The outer diameter is 60mm, and the punching size is 20mm.

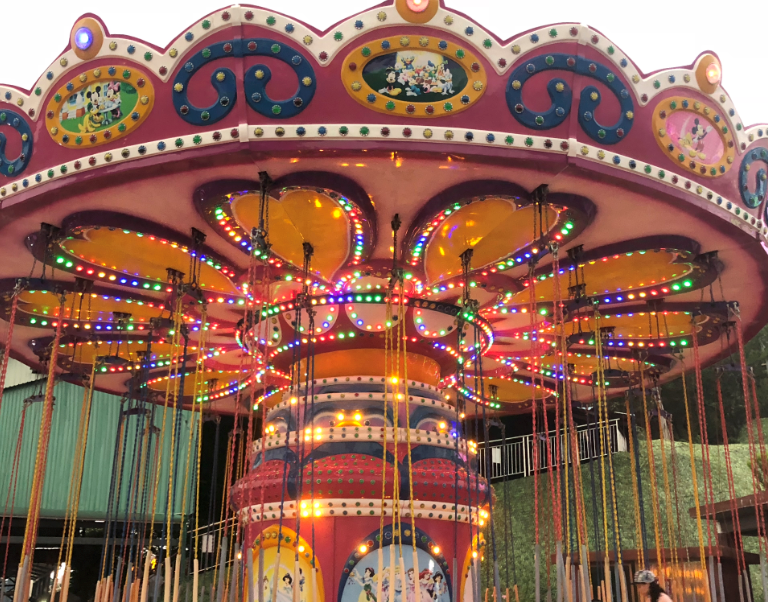

5. Mainly used in the marquee, artistic luminous characters, etc. of entertainment facilities.

Parameter

P/N Diameter/mm LED Type IC Type Luminous Angle Voltage Wattage/PCS IP Rate
SJ-6016-AU-AC24V 60mm SMD 5050 RGB AU 112 160° AC24V 3.84W IP67

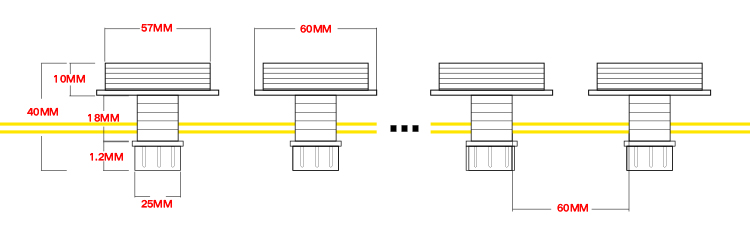

Dimension
