New product 57.6W/m 12V RGBW Pixel 60leds Programmable Digital led strip light
Model No. SJ-10060-16824-RGBW-12V
Lighting source SMD 5050 RGBW LED
Beam Angle 120 degree
IC chip  16824
Power comcumption 57.6W/Meter maximum,   14.4Watt/meter per color.
Voltage DC12V
LED QTY 60LEDs/ m
Pixel QTY 20pixels / m
Cuttable length 50mm
PCB width 12mm
PCB color white / black
Waterproof Grade IP20 / IP65 (silicon tube)/IP66/IP67
Work temperature -20°C ~ 50°C
Storage temperature -30°C ~ 70°C


SJ-10060-RGBW-12V

Features

(1) Digital RGBW pixel LED strip, SMD 5050 RGBW (4 in one) Led, one 16824 IC control 3 LEDs. 3Leds change color together,  support numerous color changing effects.

(2) The color temperature of W can be customized: warm white: 2700K-3200K,  neutral white :4000K-4500K, Cool white: 6000K-6500K.

(3) High grey level, high refresh rate, high power 57.6W/M maximum. Each color 14.4W/m maximum.

(4) Flexible PCB material, whilte PCB and Black PCB optional, there is cutting lines every 50mm.

(5) 60leds/m, low voltage 12VDC input, don‘t over 13V, otherwise you can destory the entire strip.

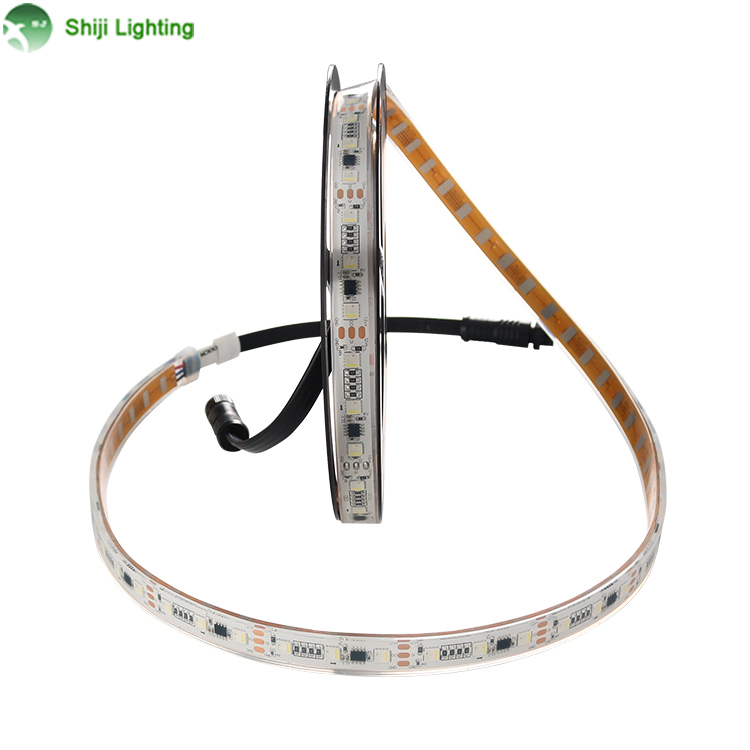

(6) It comes in 5meters per reel with a 4pin JST SM connector on both ends and seperate power /ground wire. Customized length is workable.

(7)10mm width PCB , 0.25mm thickness with 3M tape back side for non-weatherproof version .

  12.5mm width , 4mm thick with silicon tube for waterproof version .

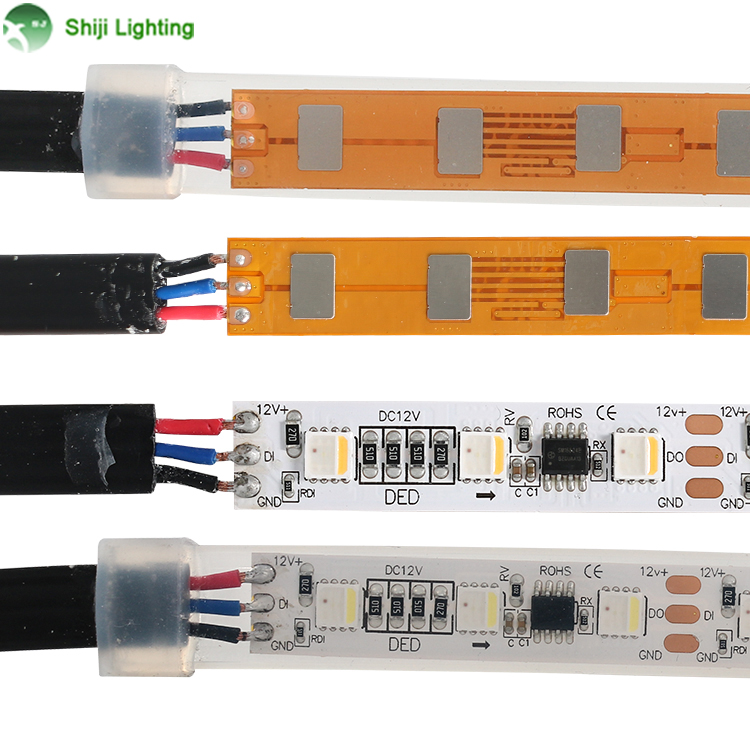

(8) Connector : 3pin JST SM connector / waterproof connector.

Parameter
P/N Diameter/mm LED Type IC Type Luminous Angle Voltage Wattage/PCS IP Rate
SJ-10060-RGB-12V 12mm / 16824 / 140° DC12V 14.4w IP20/65/68

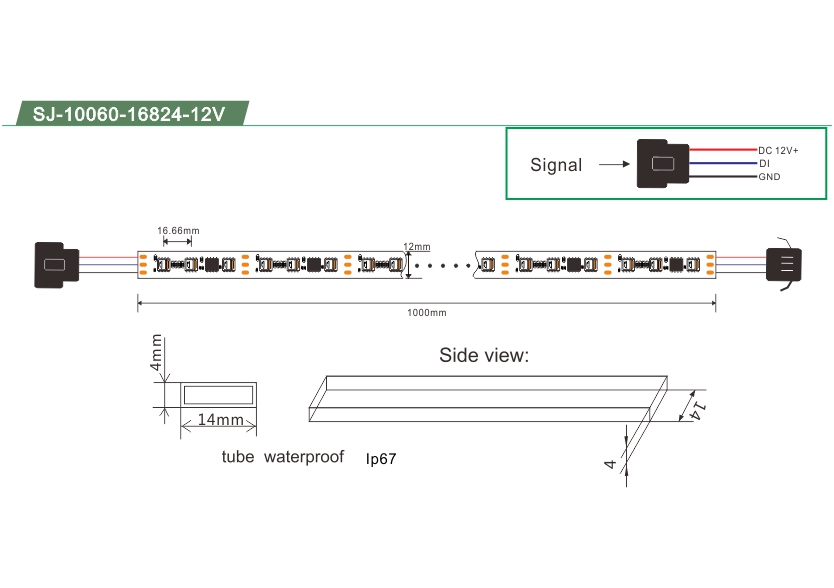

Dimension
