LED Strip Light
SMD 4020 RGB Side Emitting Led Strip 60LED SMD 4020 RGB Side Emitting Led Strip 60LED SMD 4020 RGB Side Emitting Led Strip 60LED
SMD 4020 RGB Side Emitting Led Strip 60LED
P/N                                      SJ-10060-4020-RGB
Size/mm                              5000mm * 5mm * 3mm
LED Type                            SMD 4020 RGB
LED/m                                 60 leds/m
Luminous                            400
Angle                                  120°
Voltage                                DC12V/DC24V
Wattage/m                           6 -18W
IP Rate                                IP20/IP65



SJ-10060-4020-RGB


Description
1. LED chip--SMD020 R, G, B,side emitting LED chip.

2. Standard Reel Length: 5meter/roll, also can be customized.

3. Cutted: DC12V: cutted per 3LED, there are cut-lines every 5cm.

                  DC24V: cutted per 6LED, there are cut-lines every 10cm.

4. Power: the theory power is 19.2W/M, but the really power just about 12W/M.

5. Power supply:

DC12V : you must use a 12V DC power supply to power this strip.

DC24V : please use 24V DC power supply, or you can destroy the entire strip.

6. non-waterproof: with 3M adhesive on back side for sticky;

     waterproof: screw+silicon clip, or 3M adhesive back side.

     or waterproof silicone tube + silicone glue inside

7. Type: RGB--60LEDs/m, White PCB/Black PCB

8. Color : RGB


Parameter

P/N Size/mm LED Type led/m Luminous Angle Voltage Wattage/m IP Rate
SJ-10060-4020-RGB 500mm * 8mm*3mm SMD 4020 RGB 60 leds/m 420 120° DC12V/24V 18W IP20/IP65

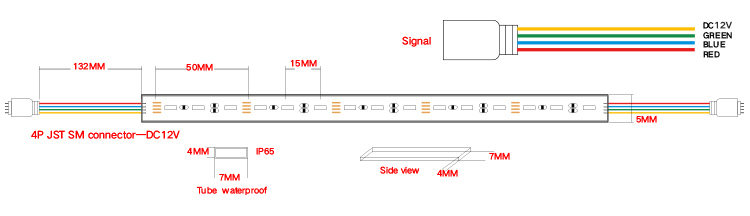

Dimension



Application

1. Background wall decoration
2. Ultra-thin light box
3. Car ambient light

etc.
