LED Strip Light
SMD 5050 RGB LED Strip Lgiht DC12V/DC24V 120 leds/m SMD 5050 RGB LED Strip Lgiht DC12V/DC24V 120 leds/m SMD 5050 RGB LED Strip Lgiht DC12V/DC24V 120 leds/m
SMD 5050 RGB LED Strip Lgiht DC12V/DC24V 120 leds/m
P/N                                      SJ-100120-5050-RGB
Size/mm                              5000mm * 5mm * 2mm
LED Type                            SMD 5050 RGB
LED/m                                 120 leds/m
Luminous                            800
Angle                                  120°
Voltage                                DC12V/DC24V
Wattage/m                           12-36W
IP Rate                                IP20/IP67




SJ-100120-RGB-24V


Features

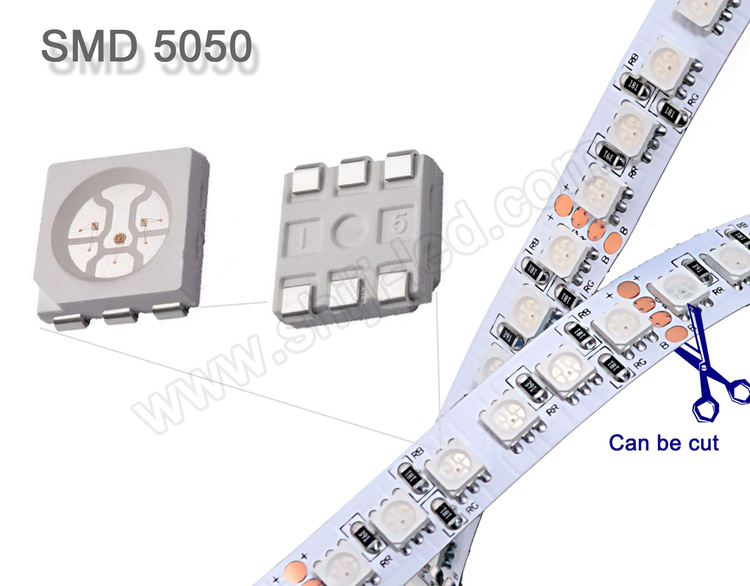

1. SMD5050 RGB  LED chip,120 leds/m

2. Standard Reel Length: 5meter/roll, also can be customized.

3. Cutted: DC12V: cutted per 3LED, there are cut-lines every 2.5cm.

                 DC24V: cutted per 6LED, there are cut-lines every 5cm.

4. Power: the theory power is 36W/M, but the really power just about 18W/M.

5. Power supply:

                DC12V : you must use a 12V DC power supply to power this strip.

                DC24V : please use 24V DC power supply, or you can destroy the entire strip.

6. non-waterproof: with 3M adhesive on back side for sticky;

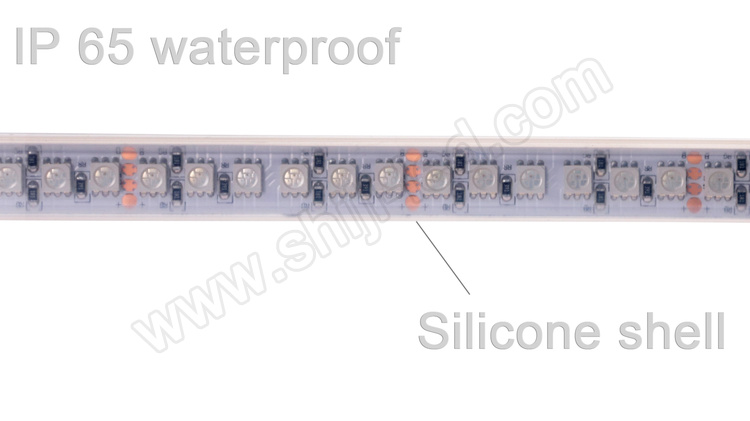

               waterproof: screw+silicon clip, or 3M adhesive back side.

               or waterproof silicone tube + silicone glue inside

7. Type: RGB--120LEDs/m, White PCB/Black PCB

8. Color : RGB


Parameter

P/N Size/mm LED Type Pixel/m Luminous Angle Voltage Wattage/m IP Rate
SJ-100120-RGB W12 * L1000mm SMD5050 RGB 120Pixels/m 840 160° DC12V/24V 36 IP20/67

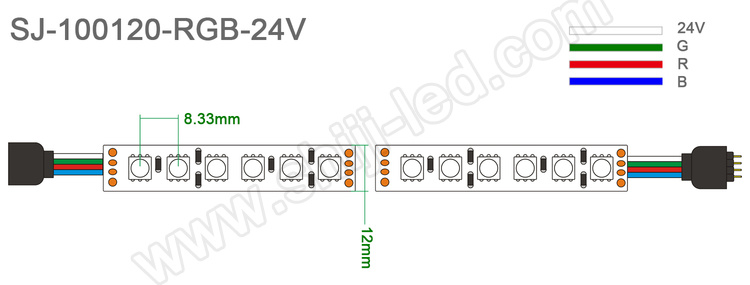

Dimension

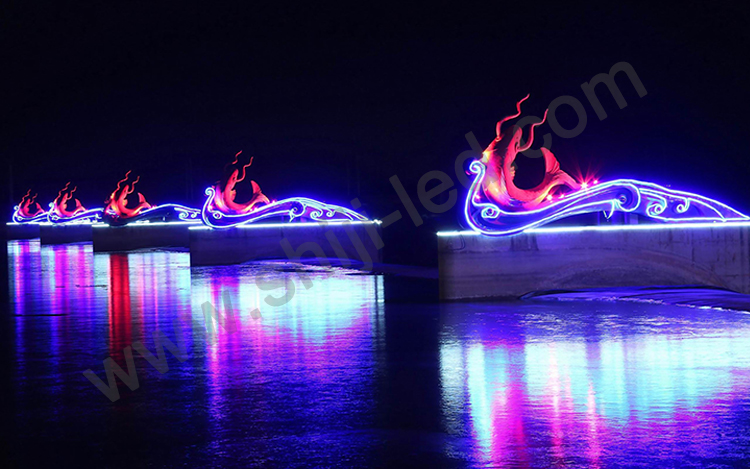

Project case

back lights, cabinet lights, edge light, architectural lights for corridor, canopy, archway, lights for path
and contour marking; etc.They can be a good choice for lights for hotels, restaurants, night clubs, coffee / wine bars, shopping malls,

Video Show :
