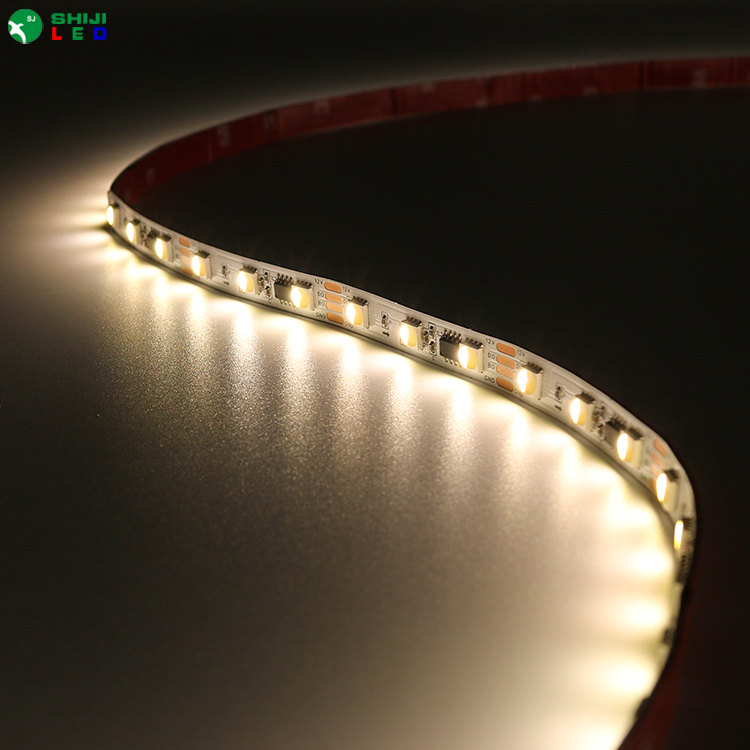

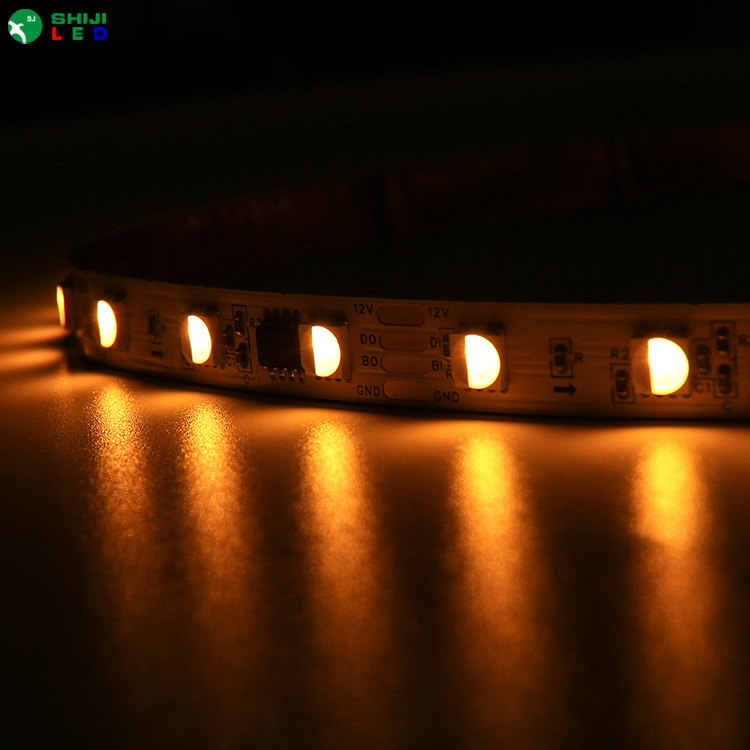

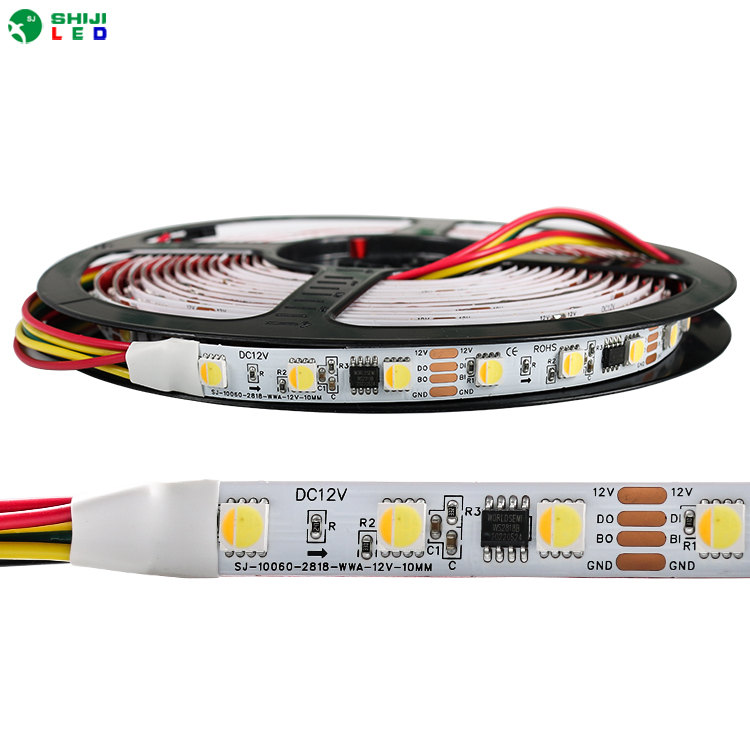

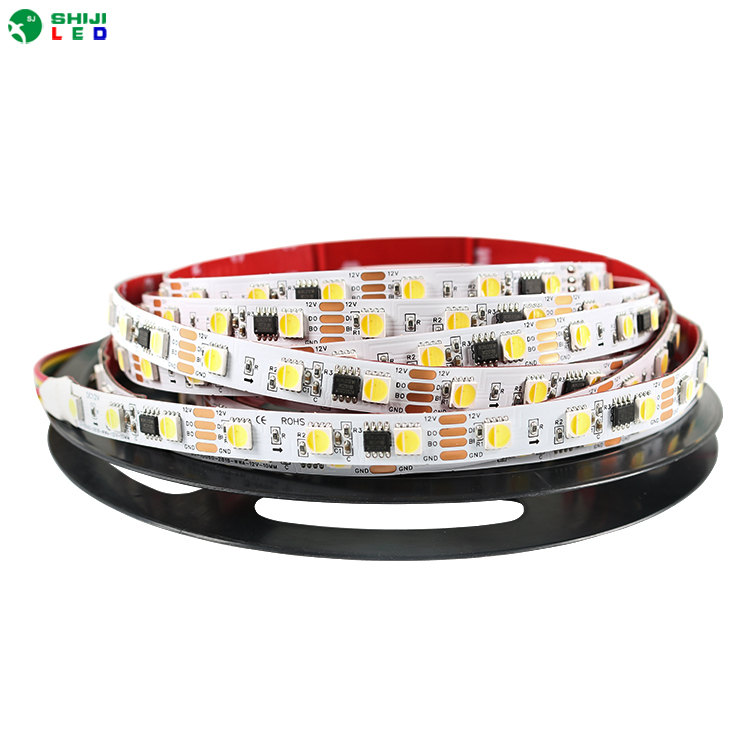

SJ-10060-2818-WWA-12v-10MM

1- Smart control IC WS2818 inserted in 5050 WWA diode (W：6000-7000K/ WW：2700-3200K/ Amper：1800-2000K).

2- 0.24w per diode in high brightness , IC WS2818, if one pixel is damaged, the others keep working well.

3- WS2818 led have two data signal / 2 date pin, any pixel failure won‘t affect signal transfer ,unless two consecutive adjacent LED are broken.4- 60LEDs/m , DC12V operating , 5m in one reel , 4Pin JST SM connector on both end and separated Power /Ground Wires

5- Flexible PCB material .Each LED/Pixel can be cut ,there is cut lines every 16.67mm.

6- White and black PCB optional.

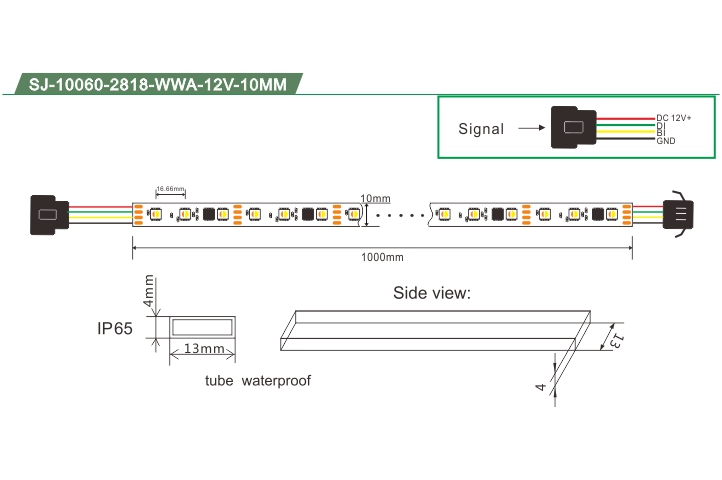

7- 10mm width PCB , 0.25mm thickness with 3M tape back side for non-weatherproof version . 12.5mm width , 4mm thickness with silicon tube for waterproof version.

8- Protocol controller: sd card controller, artnet controller, wifi controller, remote controller, blue tooth controller...
