LED Strip Light
 SK6812 3535 RGB Led Strip 144pcs Leds/m  SK6812 3535 RGB Led Strip 144pcs Leds/m  SK6812 3535 RGB Led Strip 144pcs Leds/m

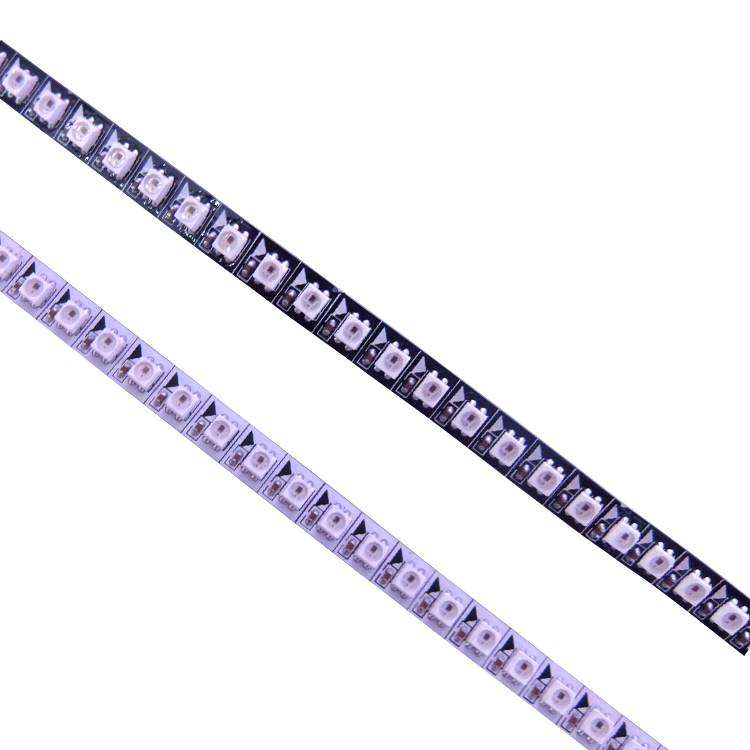

SK6812 3535 RGB Led Strip 144pcs Leds/m
P/N                                      SJ-100144-SK6812
Size/mm                               5000mm * 12mm * 2mm
LED Type                              SMD 3535 RGB
LED/m                                  144 leds/m
Luminous                              900
Angle                                   160°
Voltage                                 DC5V
Wattage/m                           15-43.2W
IP Rate                                 IP20/IP65




SJ-100144-6812-35


Features

1. Control IC SK6812 inserted in MINI 3535RGB LED diode, supporting numerous color-change effects .

2. White PCB and black PCB optional .

3. led flexible tape light comes in 1 meters per reel with 3Pin female/male JST SM connector on both end and separated Power / Ground Wires . Customized length is workable .

4. Flexible PCB material . Each LED/Pixel can be cut , there is cut lines every 6.9 mm.

5. 144 LEDs/M . 5V low voltage inputted , don’t over 6V , otherwise you will destroy the entire strip .

6. 8mm width PCB , 0.25mm thickness with 3M tape back side for non-weatherproof version . 10.5mm width , 4mm thick with silicon tube for waterproof type .

7. It is only Date Pin for signal transfer , no Clock Pin .

8. Controller SystemSD controller , DMX controller , Artnet and so on .


Parameter

P/N Size/mm LED Type Pixel/m Luminous Angle Voltage Wattage/m IP Rate
SJ-100144-6812-35 1000mm*8mm SK6812-SMD3535 144Pixels/m 900 160° DC5V 34.56w IP20/65



Dimension




Project case
