LED Strip Light
Addressable  LED Strip Light UCS1903/WS2811 DC12V/DC24V 60Leds/m Addressable  LED Strip Light UCS1903/WS2811 DC12V/DC24V 60Leds/m Addressable  LED Strip Light UCS1903/WS2811 DC12V/DC24V 60Leds/m Addressable  LED Strip Light UCS1903/WS2811 DC12V/DC24V 60Leds/m
Addressable LED Strip Light UCS1903/WS2811 DC12V/DC24V 60Leds/m
P/N                                      SJ-10060-1903/2811
Size/mm                               5000mm * 10mm
LED Type                              SMD 5050 RGB
LED/m                                  60 leds/m
Luminous                              420LM
Angle                                    160°
Voltage                                 DC12V/24V
Wattage/m                            18W
IP Rate                                  IP20/IP65




SJ-10060-ucs1903/ws2811


Features

1. Support a variety of control systems, such as Madrix, Bluetooth controller, mobile APP, WIFI control, etc.

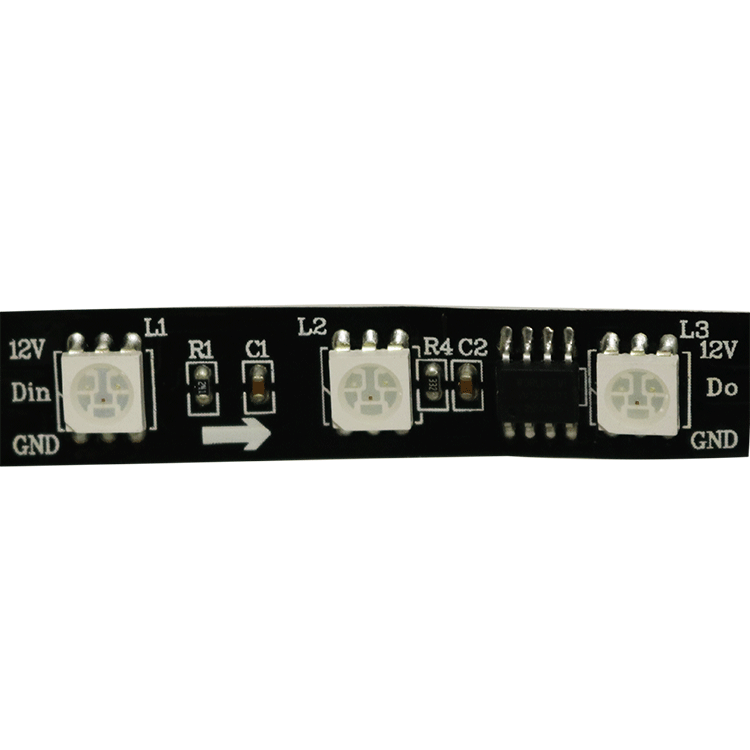

2. It can be made into 3 5050RGB lamp beads with a 1903/2811 IC, the voltage is C12V, and the 3 lamps can be cut.

3. It can also be made into 6 5050RGB lamp beads with a 1903/2811 IC, the voltage is C24V, and the 6 lamps can be cut. .

4. Each 1903/2811 IC is addressable and controllable.

5. PCB Color: Available in white and black.

6. It can be made into two processes of casing waterproofing and glued waterproofing.


Parameter

P/N Size/mm LED Type Pixel/m Luminous Angle Voltage Wattage/m IP Rate
SJ-10060-1903/2811 5000mm*10mm SMD 5050 RGB 20/10Pixel/m 420 160° DC12V/ 24V 14.4W IP20/65

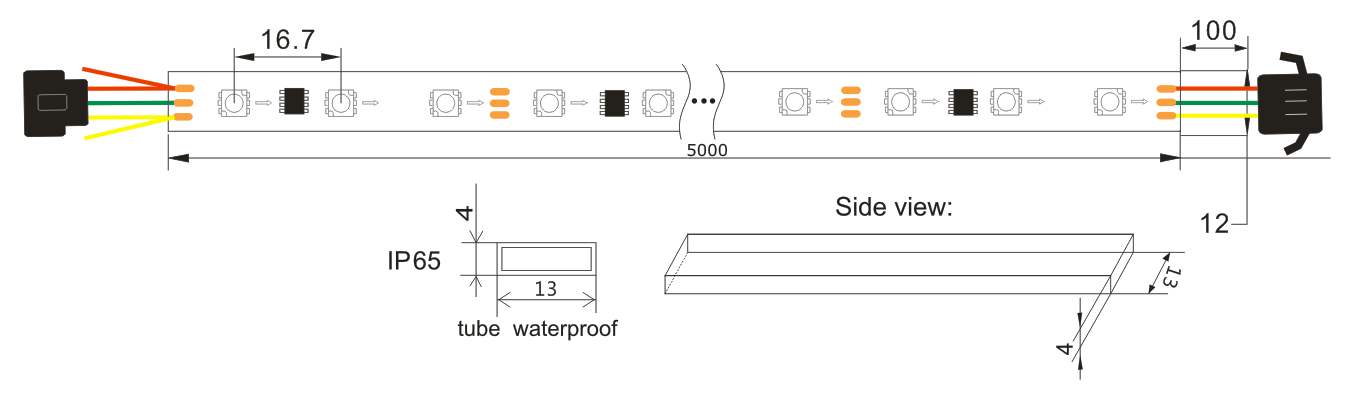

Parameter(mm)

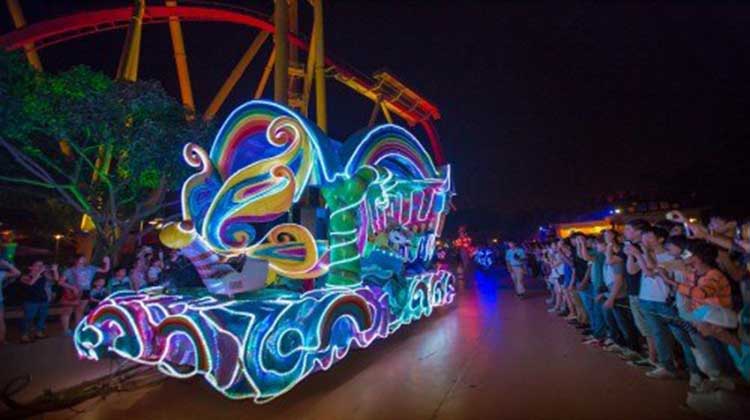

Project case
