Led Strip
SJ-10060-UCS2904 SJ-10060-UCS2904 SJ-10060-UCS2904 SJ-10060-UCS2904
■. It can be used for KTV decorative lights.
■. It can be used for home lighting decoration.
■. It  can be used to create LED advertising logo.
■. It can be used for stage lighting decoration.
■. It can be used for entertainment lighting decoration.
■. It can be used for shopping mall counter lighting.


UCS2904 DC12V RGBW LED strip light


1,Control IC UCS2904  inserted in 5050 RGBW LED diode,RGBW 4 in one led lamp,supporting numerous color-change effects.

2,White PCB and black PCB optional.

3,It comes in 5 meters per reel with 3 pin female/male JST SM connector on both end separated power/groud wires,customized length is workable.

4,Flexible PCB material,each 3LED can be cut,there is cut lines every 5cm.

5,60 LEDs/M,12V low voltage inputted,don‘t over 13V,otherwise you will destroy the entire strip.

6,10mm width PCB, with 3M tape back side for non-waterproof version.12mm width with silicon tube for waterproof type.

7,It is only date pin for signal transfer,no clock pin.


P/N Size/mm LED Type Pixel/m Luminous Angle Voltage Wattage/m IP Rate
W10 * L5000mm
UCS2904-smd5050 60 Pixel/m 420 160° DC12v 19.2w IP20/65

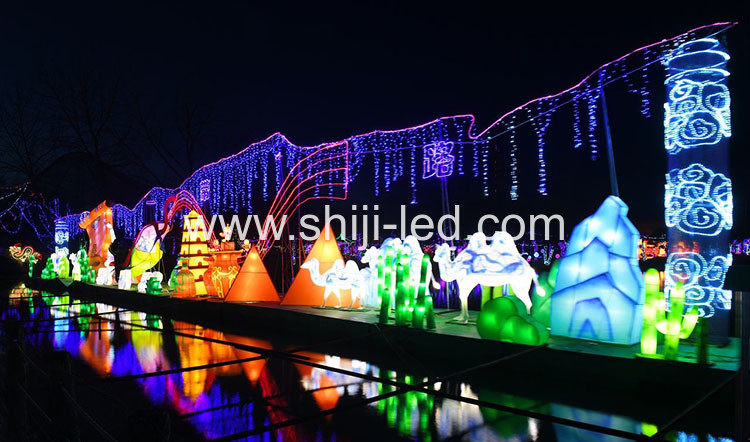

Project case

back lights, cabinet lights, edge light, architectural lights for corridor, canopy, archway, lights for path
and contour marking; etc.They can be a good choice for lights for hotels, restaurants, night clubs, coffee / wine bars, shopping malls,
various shops, cinemas, beauty centers, office fronts, even lights for household kitchens or living rooms, etc.
