LED Strip Light
SMD 2020 APA102 RGB LED Strip 200LEDS/M SMD 2020 APA102 RGB LED Strip 200LEDS/M SMD 2020 APA102 RGB LED Strip 200LEDS/M SMD 2020 APA102 RGB LED Strip 200LEDS/M
SMD 2020 APA102 RGB LED Strip 200LEDS/M

P/N                                      SJ-100200-APA102-2020
Size/mm                             1000mm * 5mm * 1mm
LED Type                            RGB SMD 2020
LED/m                                 200 leds/m
Luminous                            1400
Angle                                  160°
Voltage                                DC5V
Wattage/m                           20W
IP Rate                                IP20




SJ-100200-APA102-2020

Description

1. Support a variety of control systems, such as Madrix, Bluetooth controller, mobile APP, WIFI control, etc.

2. Each SMD 2020 RGB addressable LED is plugged into an APA102C.

3. Each LED is independent and can be cut.

4. Each LED is addressable and controllable.

5. PCB color: white and black are available.

6. The recommended length is 1 meter per roll. The length can also be customized according to your needs.

7. It is recommended that the brightness is below 60% if used for a long time.

Parameter
P/N Size/mm LED Type led/m Luminous Angle Voltage Wattage/m IP Rate
SJ-100200-APA102-2020 1000mm*5mm * 1mm RGB SMD 2020 200LEDs/m 1400 160° DC5V 20w IP20

Dimension

Application

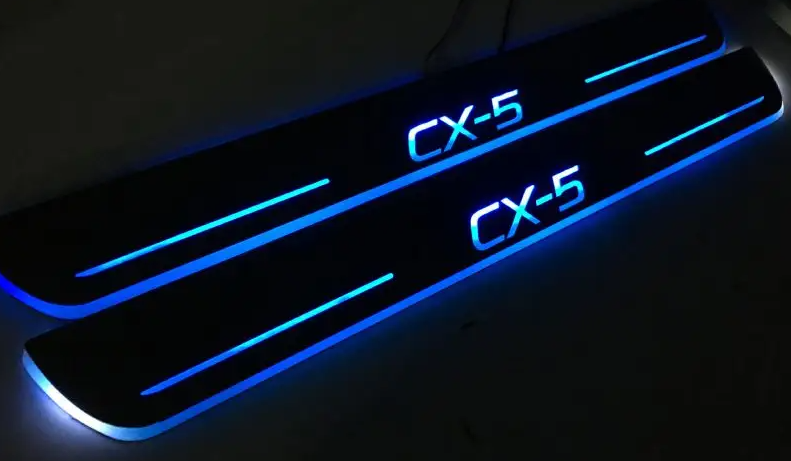

1. Car ambient lighting

2. Meteor Marquee Lights

3. Machine ambient lighting

etc.
