LED Strip Light
SMD 5050 RGBW Pixel Flexible LED Strip DC12V 60leds/m SMD 5050 RGBW Pixel Flexible LED Strip DC12V 60leds/m SMD 5050 RGBW Pixel Flexible LED Strip DC12V 60leds/m SMD 5050 RGBW Pixel Flexible LED Strip DC12V 60leds/m

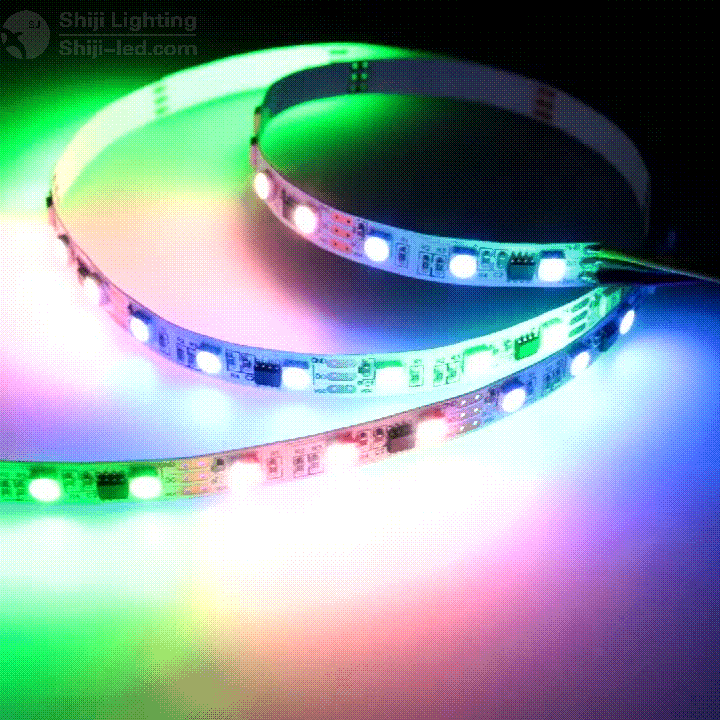

SMD 5050 RGBW Pixel Flexible LED Strip DC12V 60leds/m
P/N                                      SJ-10060-RGBW-2904
Size/mm                              5000mm * 5mm *
LED Type                            SMD 5050 RGBW
LED/m                                 60 leds/m
Luminous                            1000
Angle                                  160°
Voltage                                DC12V
Wattage/m                           6-18W
IP Rate                                IP20/IP65




SJ-10060-RGBW-2904

Features

1. Support a variety of control systems, such as Madrix, Bluetooth controller, mobile APP, WIFI control, etc.

2. The LED of the product is SMD 5050 RGBW. It contains R, G, B, W4 channels

3. Every 3 SMD 5050 RGBW LEDs are matched with a UCS2904 IC.

4. Every 3 LEDs are independent and can be cut

5. Each 3 LEDs form a pixel, which is addressable and controllable.

6.PCB Color: Available in white and black.

7. The recommended length is 5 meters per roll. The length can also be customized according to your needs.

Parameter

P/N Size/mm LED Type Pixel/m Luminous Angle Voltage Wattage/m IP Rate
SJ-10060-RGBW-2904 1000mm*10mm SMD 5050 RGBW 20Pixel/m 420 160° DC12V 18W IP20/65

Dimension
