C9 Christmas RGB LED pixel Light DC12V C9 Christmas RGB LED pixel Light DC12V C9 Christmas RGB LED pixel Light DC12V

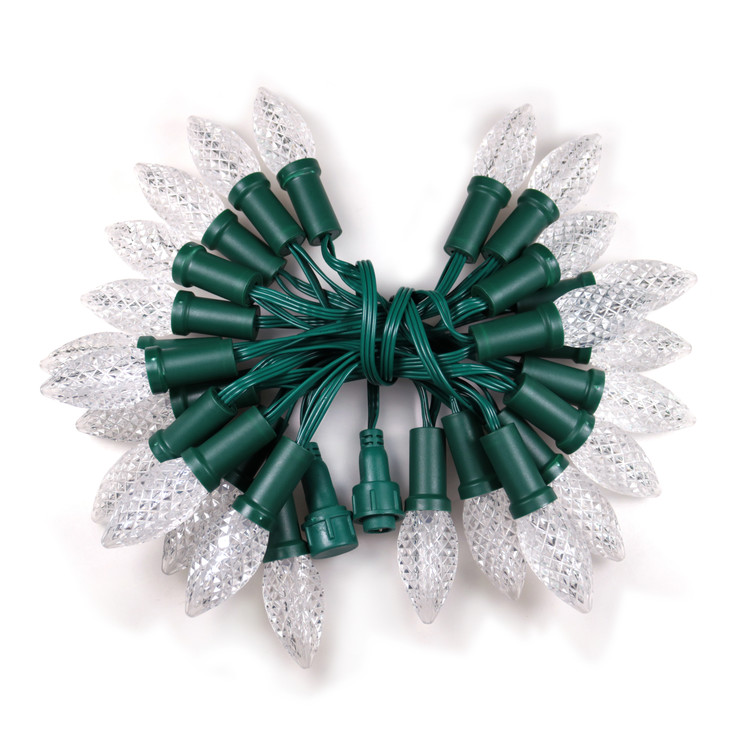

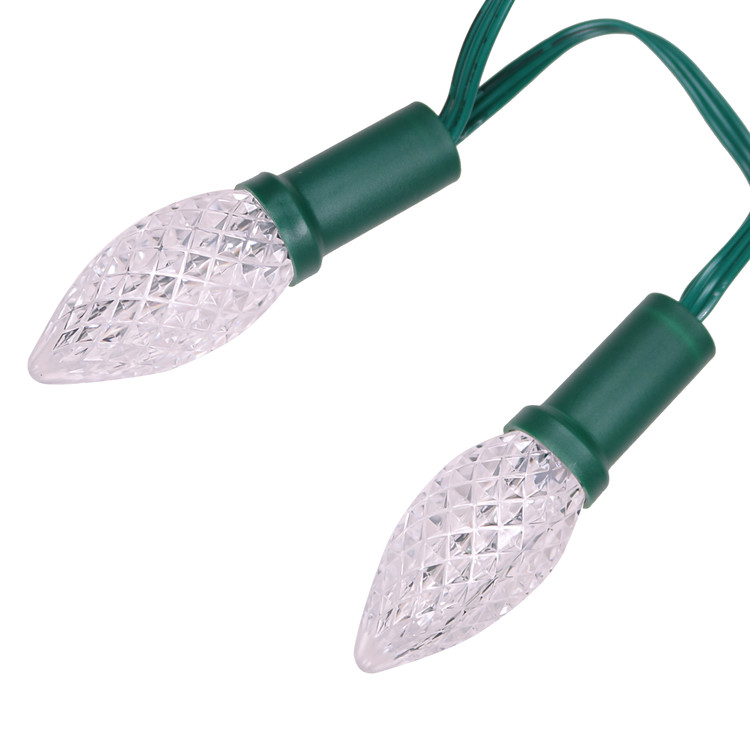

C9 Christmas RGB LED pixel Light DC12V
P/N                                        SJ-C9-8208
Diameter/mm                       23mm
LED Type                               RGB SMD 5050
LED/pcs                                1leds/pcs
IC Type                                 GS 8208
Luminous                              8LM
Angle                                    270°
Voltage                                 DC12V
Wattage/pcs                         0.3W/pcs
IP Rate                                 IP67




SJ-C9-8208


Features

1.C9 Christmas lights are suitable for outdoor applications.

2. Each pixel is individually controlled.

3.50 pieces of lights per chain with 12cm spacing (standard length), but can be customized.

4. Each LED contains a SMD5050RGB, with a GS208 IC.
5. The PVC shell adopts optical design, which can emit light from different angles.

7. Both ends of the light string are waterproof connectors, IP68

8. Mainly used in Christmas decoration, etc.


Parameter

P/N Size/mm LED Type  IC Type Luminous Angle Voltage Wattage/m IP Rate
SJ-C9-8208 23mm SMD 5050 RGB GS 8208  7 270° DC12v 0.3 IP67

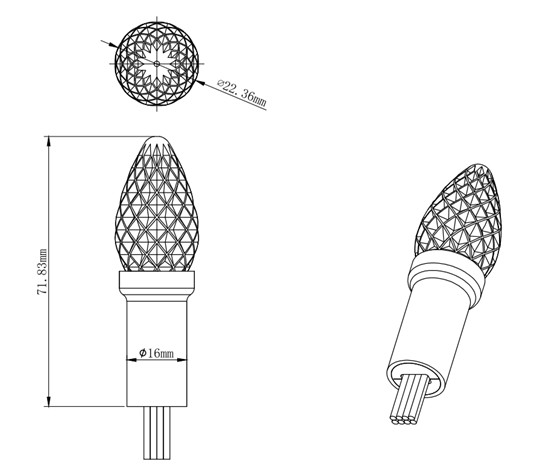

Dimension

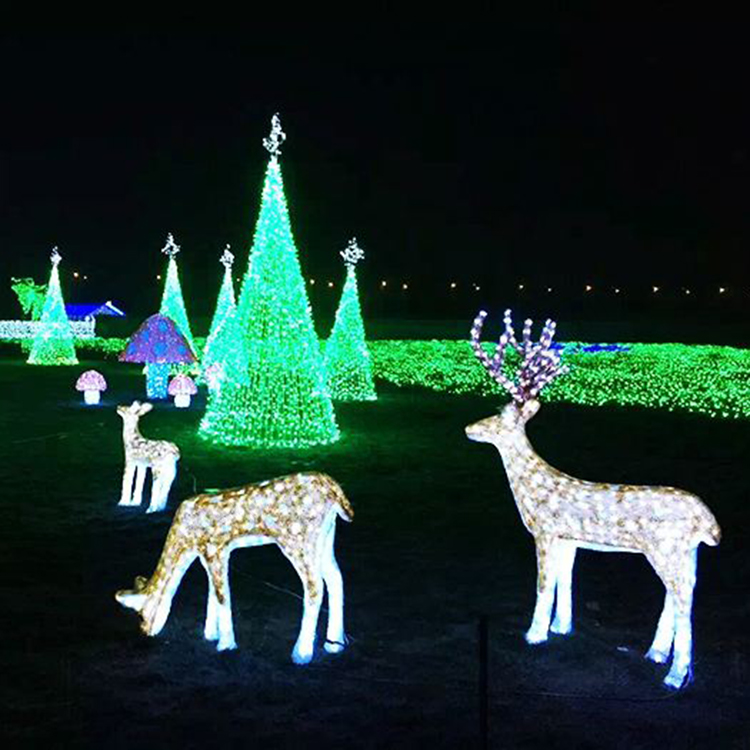

Project case
