Side View Pixel LED Strip Series
Addressable Programmable DC5V Side Neon Strip RGB RGBW Pixel LED Strip Light Addressable Programmable DC5V Side Neon Strip RGB RGBW Pixel LED Strip Light Addressable Programmable DC5V Side Neon Strip RGB RGBW Pixel LED Strip Light Addressable Programmable DC5V Side Neon Strip RGB RGBW Pixel LED Strip Light Addressable Programmable DC5V Side Neon Strip RGB RGBW Pixel LED Strip Light Addressable Programmable DC5V Side Neon Strip RGB RGBW Pixel LED Strip Light
Addressable Programmable DC5V Side Neon Strip RGB RGBW Pixel LED Strip Light
1)Input Voltage: DC5V
2)LED Resource: SMD4020 RGB LED/SMD4818 RGBW LED
3)Beam Angel: 120 Degree
4)IC Type: SK6812

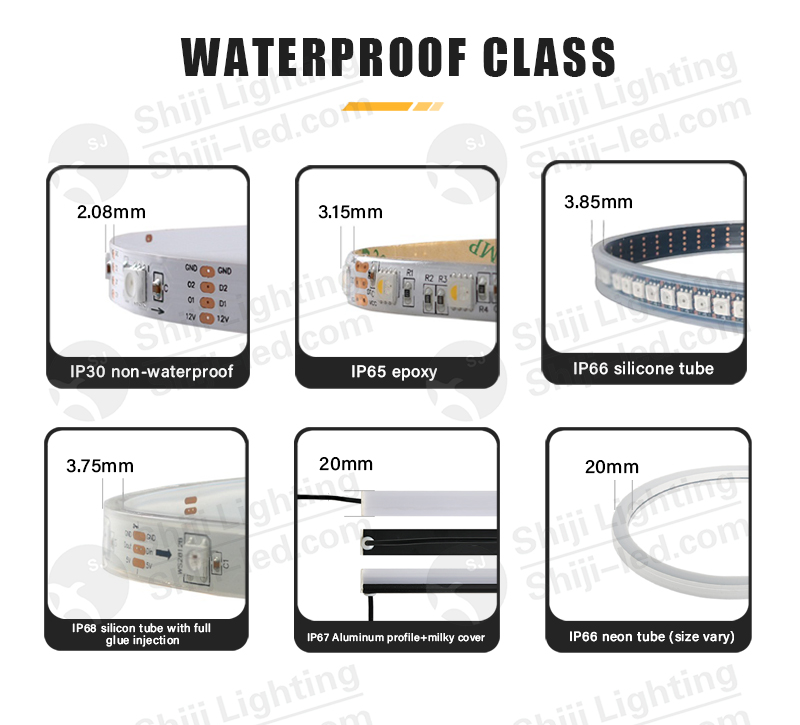

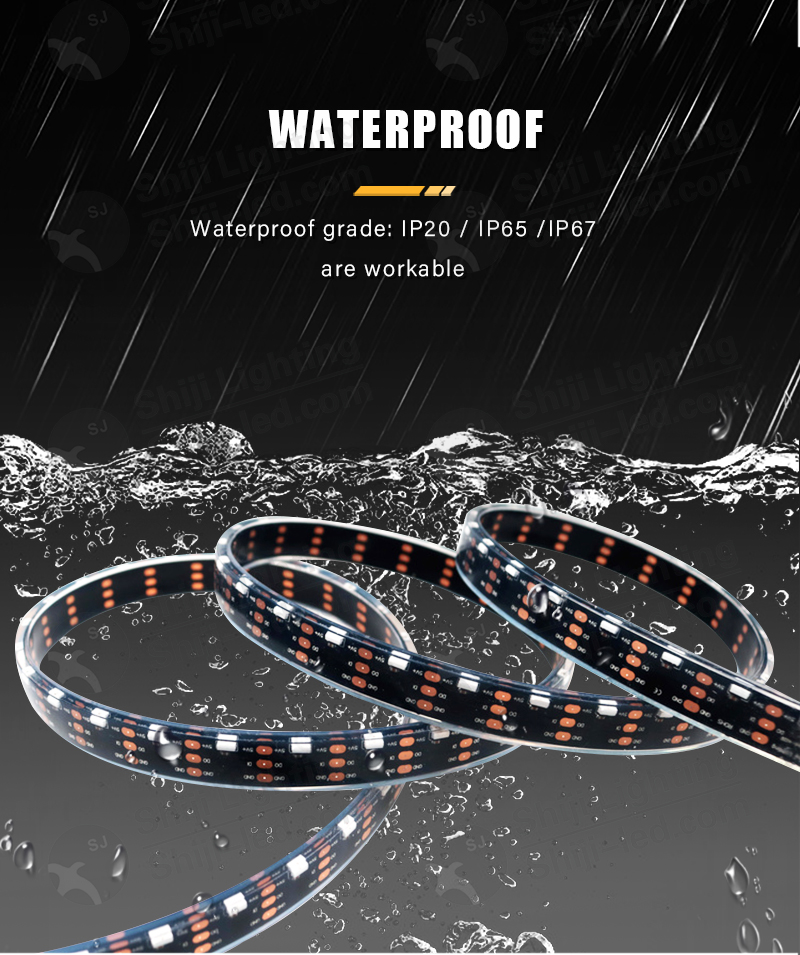

5)IP Ranking: IP20/IP65(Silicon tube)/IP67
6)Leds/M: 60/90/120/144
7)PCB Color: Black/White
8)PCB Width: 5mm / 8mm /12mm
9)Life Span: ≥50000h
10)Colors: Full Color RGB RGBW

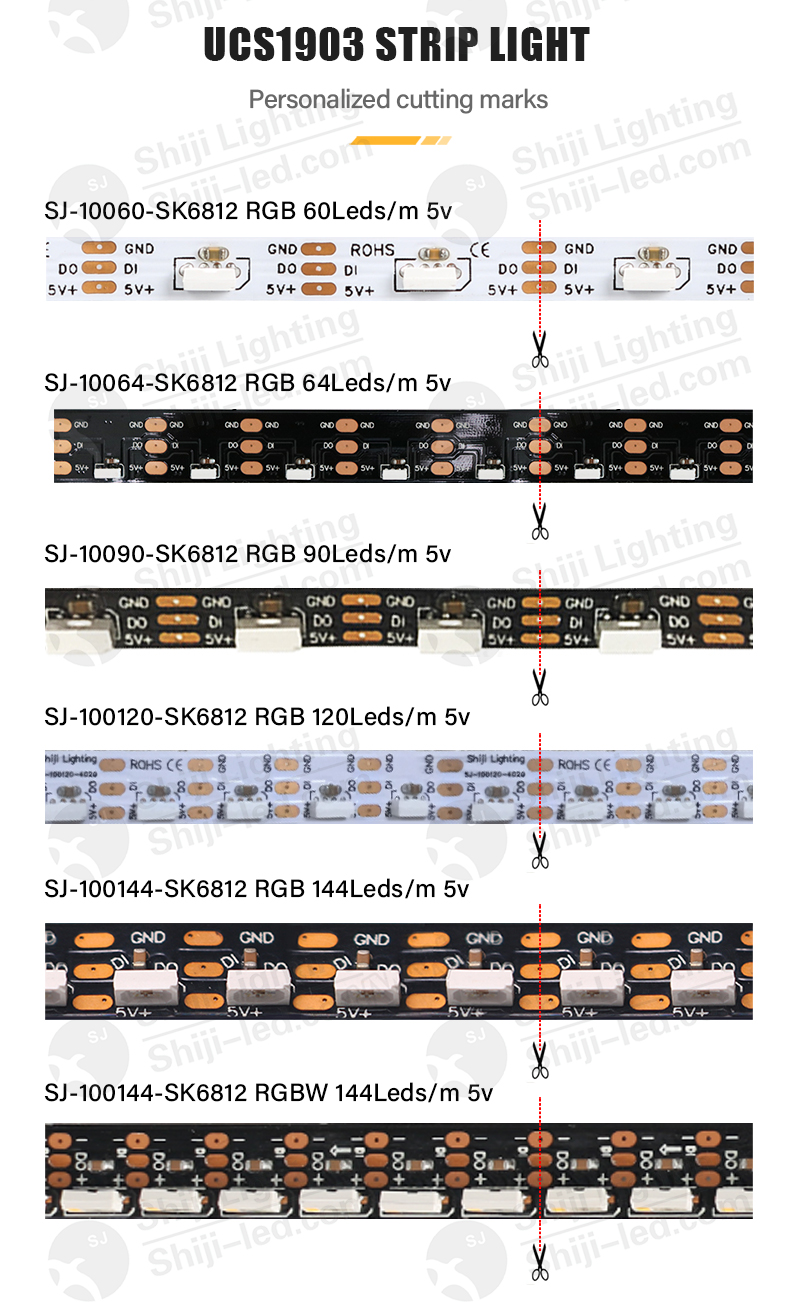

Part NO SJ-10060/64/90/120/144-6812-4020
Part NO SJ-100144-4818 RGBW-5V

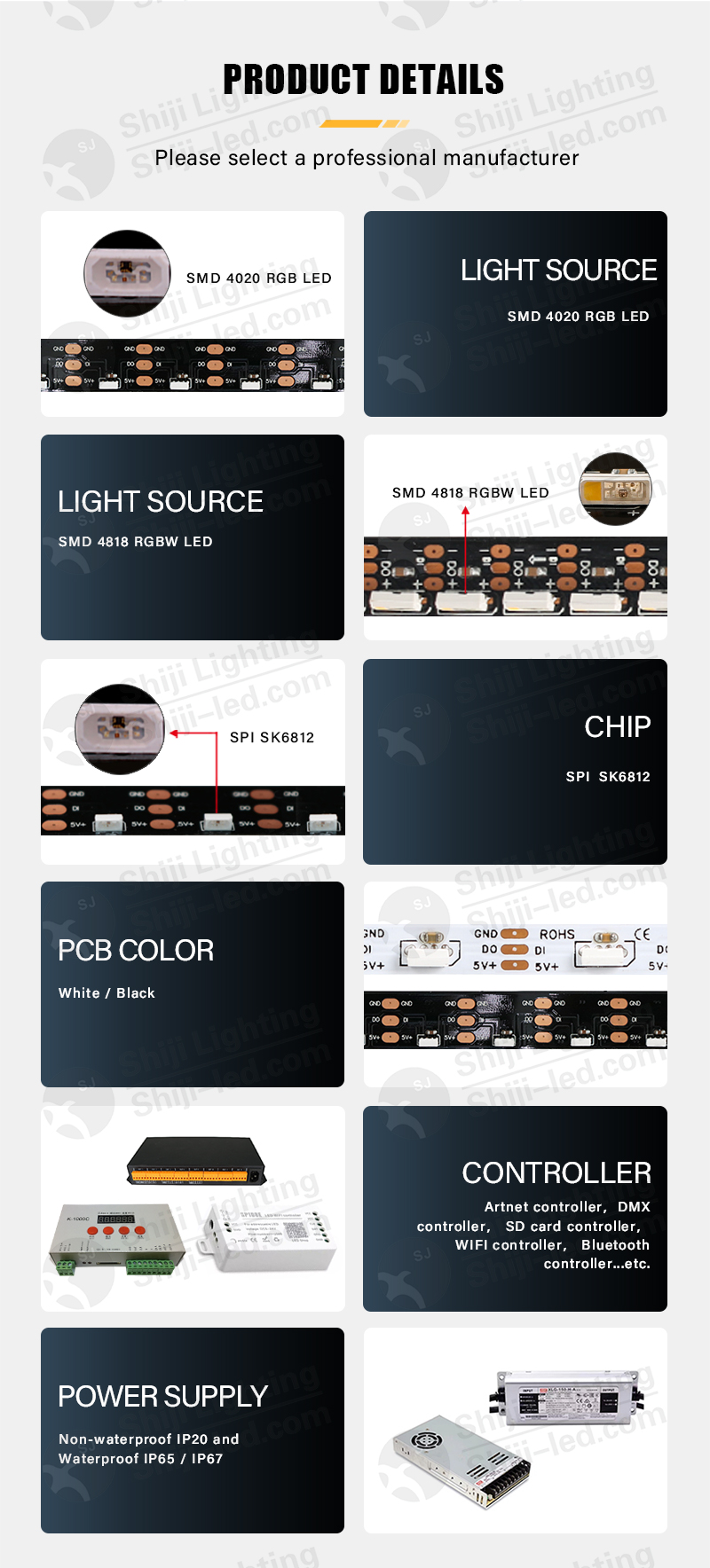

Lighting Source SMD4020 RGB LED/SMD4818 RGBW LED
Beam Angel 120 degree
Operate Voltage DC5V
Consumption Watt/M 12W/12.8W/18W/24W/28.8W/21.6Watt (max)

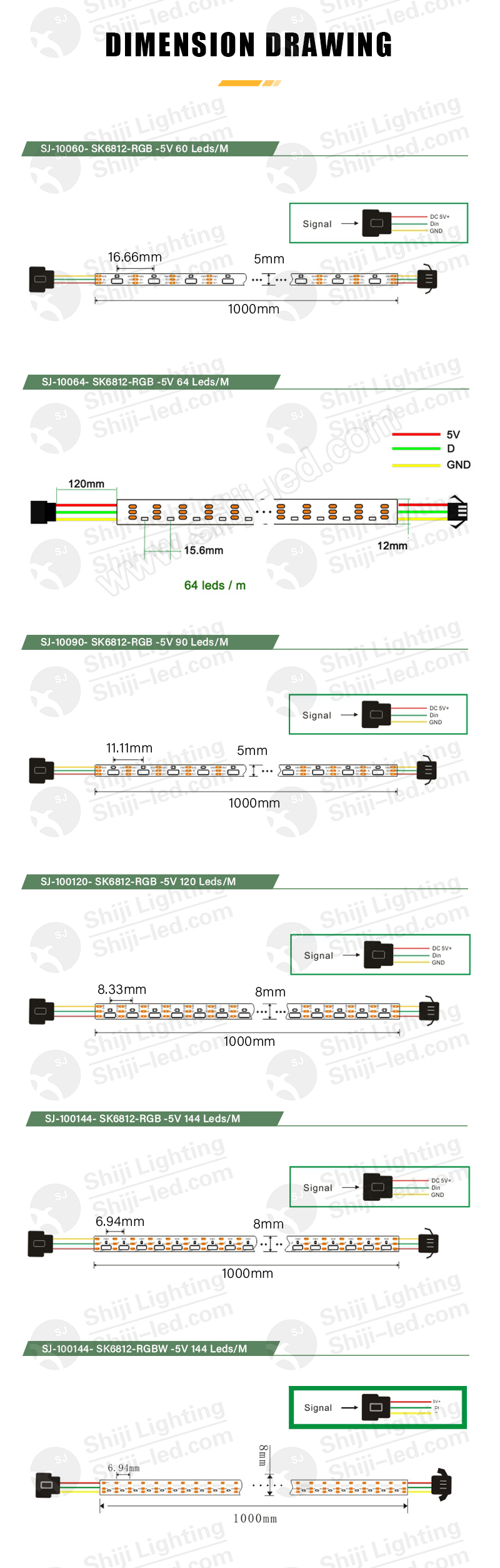

Pixel Pitch (mm) P16.67mm/ 15.6mm/11.1m/ 8.3mm /6.9mm

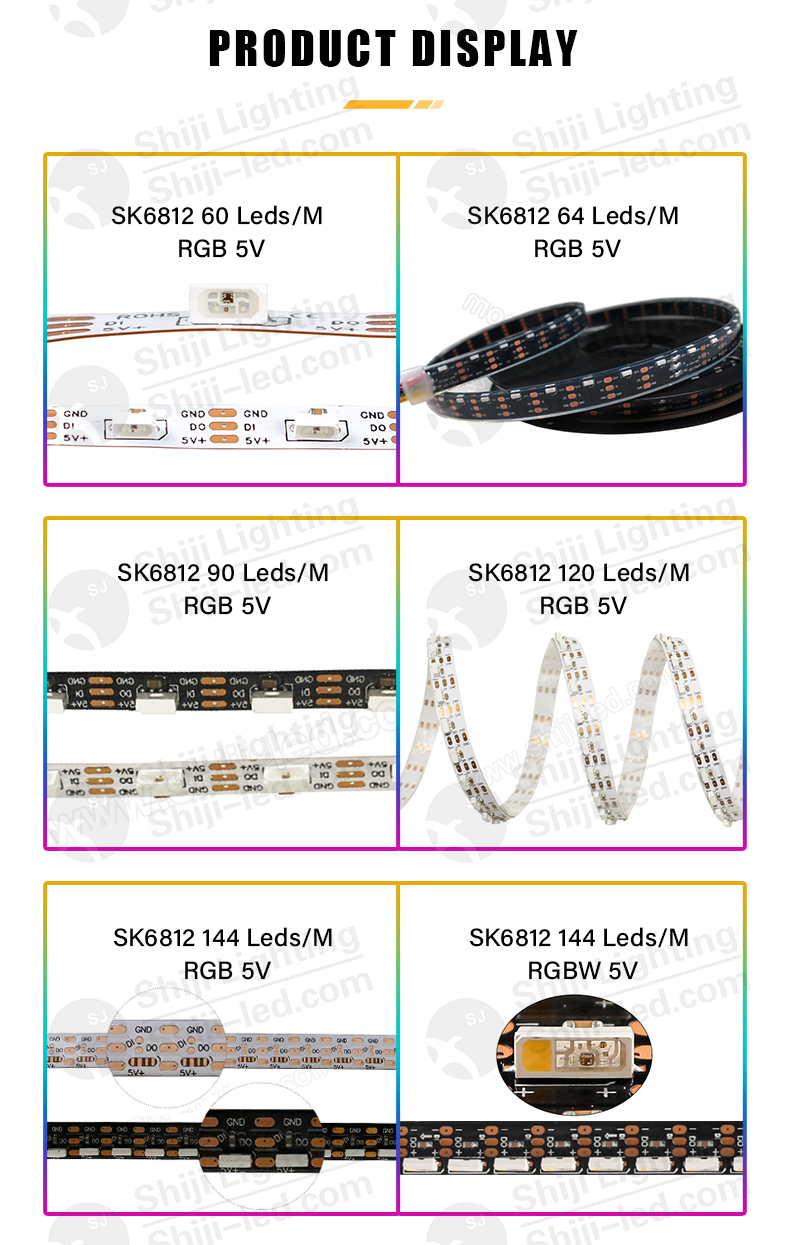

LEDs (Pixel)/M 60/90/120/144
Pixels/M 60/90/120/144 Pixels/m
IC chip SK6812
PCB Color Black/white
PCB Width 5mm / 8mm /12mm
Waterproof Grade IP20/IP65(Silicon tube)/IP67
