45mm
45mm LED entertainment Light 360° DC24V 45mm LED entertainment Light 360° DC24V 45mm LED entertainment Light 360° DC24V

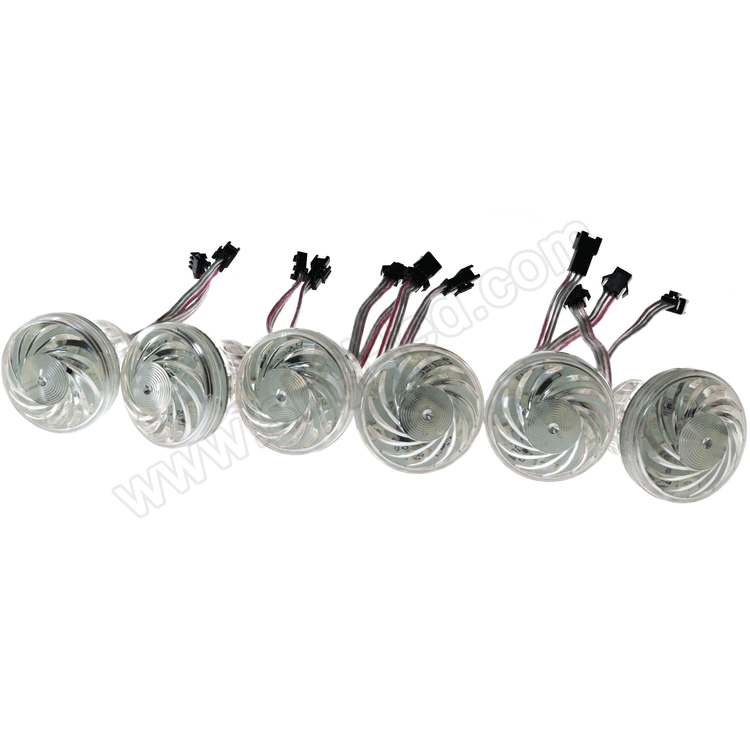

45mm LED entertainment Light 360° DC24V

P/N                                       SJ-4512-2903

Diameter/mm                         45mm

Hole/mm                                20mm

LED Type                               RGB SMD 5050

LED/pcs                                12leds/pcs

IC Type                                  UCS 2903

Luminous                               84LM

Angle                                     360°

Voltage                                  DC24V

Wattage/pcs                          2.88W/pcs

IP Rate                                  IP67




SJ-4512-2903

Features

1.360 degree light emission, 8 LEDs on the front and 4 LEDs on the back.

2. An IC with UCS 2903 that can address animation programs.

3. Combination: PVC shell (heat-resistant, cold-resistant, UV-resistant) and PCB board, connector cable.

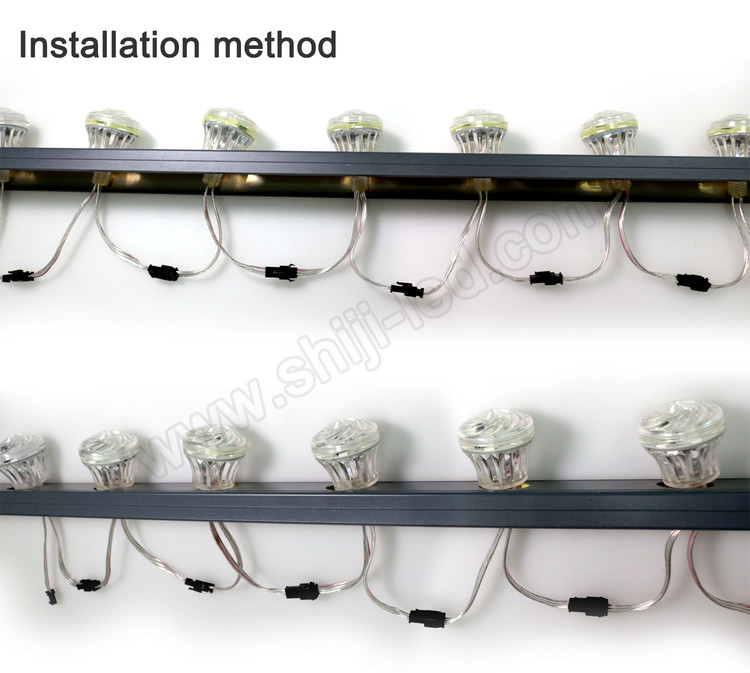

4. The installation is convenient and firm, and the hole is 20mm for fixing.

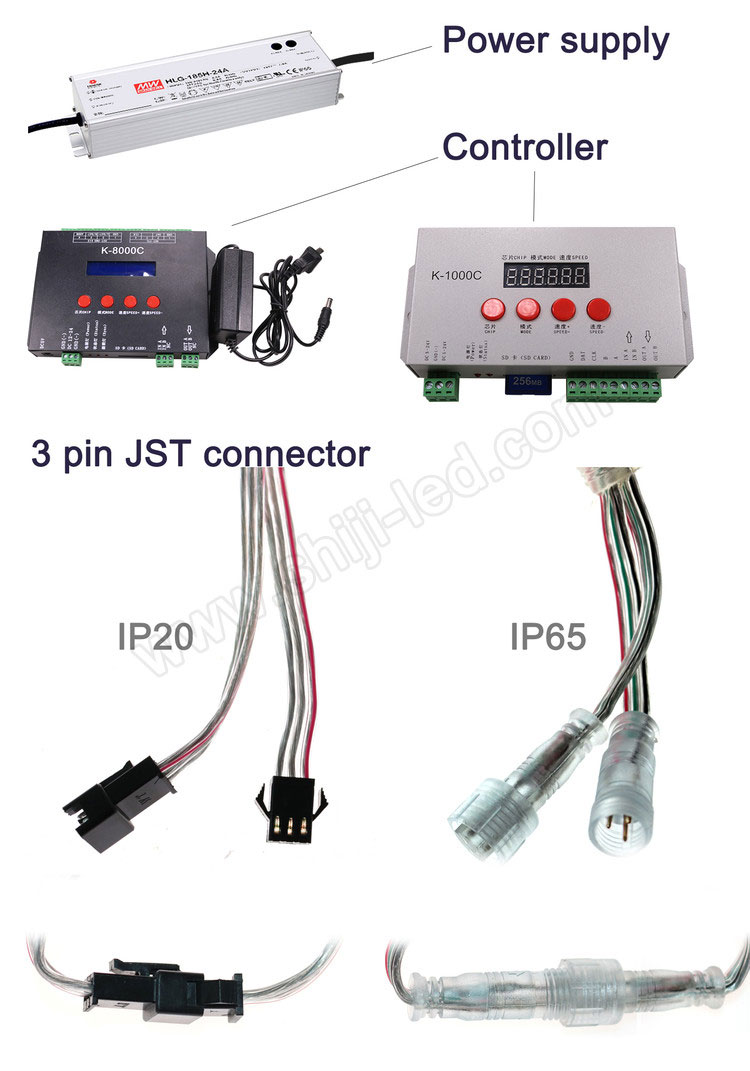

5. There are common JST terminals and waterproof connectors to choose from

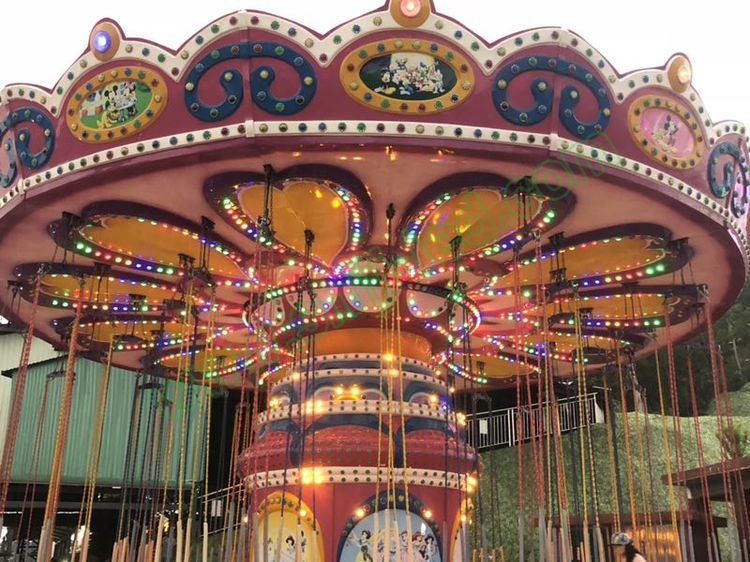

6. Mainly used in Fairground equipment etc

Parameter

P/N Size/mm LED Type Install hole Luminous Angle Voltage Wattage/PCS IP Rate
SJ-4512-2903 45mm SMD 5050 RGB 19mm 84 360° DC24V 2.88W IP65

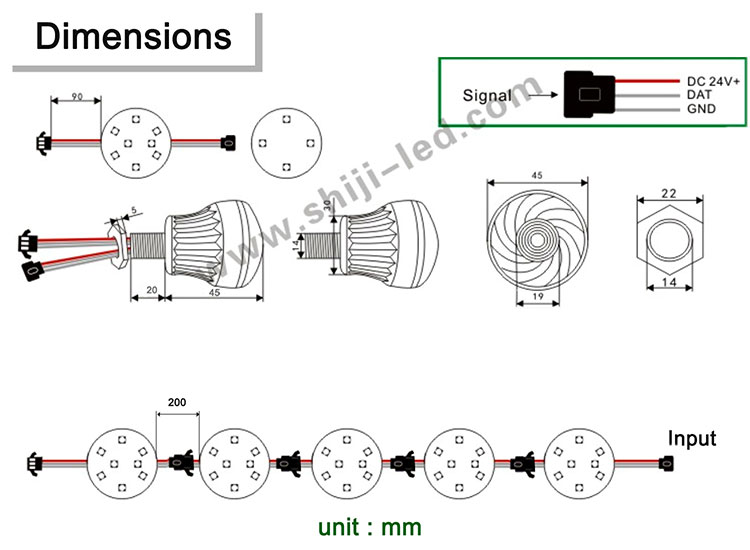

Dimension

Project case
