SJ-9822-64 (5050) SJ-9822-64 (5050)
SJ-9822-64 (5050)
■. It can be used for KTV decorative lights.

■. It can be used for home lighting decoration.

■. It  can be used to create LED advertising logo.

■. It can be used for stage lighting decoration.

■. It can be used for entertainment lighting

SJ-9822-64 (5050)

small 64pixels 9822 led Madrix display



Features

1.There‘s a new square design LED matrix! 8*8 Pixel APA102C LEDs use a 2-wire SPI,it can  push data much faster than with the WS2812B 800 KHz protocol and there‘s no specific timing required. it‘s  also have much higher PWM refresh rates.
2.This  SMD 3535 LEDs is GRB color sequence ,not RGB sequence !!! with an embedded microcontroller inside the LED. You can set the color/brightness of each LED to 24-bit color (8 bits each red green and blue). Each LED acts like a shift register, reading incoming color data on the input pins, and then shifting the previous color data out on the output pin. By sending a long string of data, you can control an unlimited LEDs
3.These LEDs have 2 wires (input and output) for  clock  and one data pin.
Because the clock and data is seperated, you can use any microcontroller or microprocessor, including Arduino, Raspberry Pi, BeagleBone, Propeller to control it
PWM rate. You only have to set the 24-bit color data for each pixel LED once, and then the LED+built-in-chip will handle the PWMing of the red, green and blue.
On our WS2812B Matrix, this PWM rate happens 400 Hz, which works well but is noticably at lower brightnesses and if the strip is moving in any way. have a 20 KHz PWM rate, even if you set any color or animation, there is no pixelation

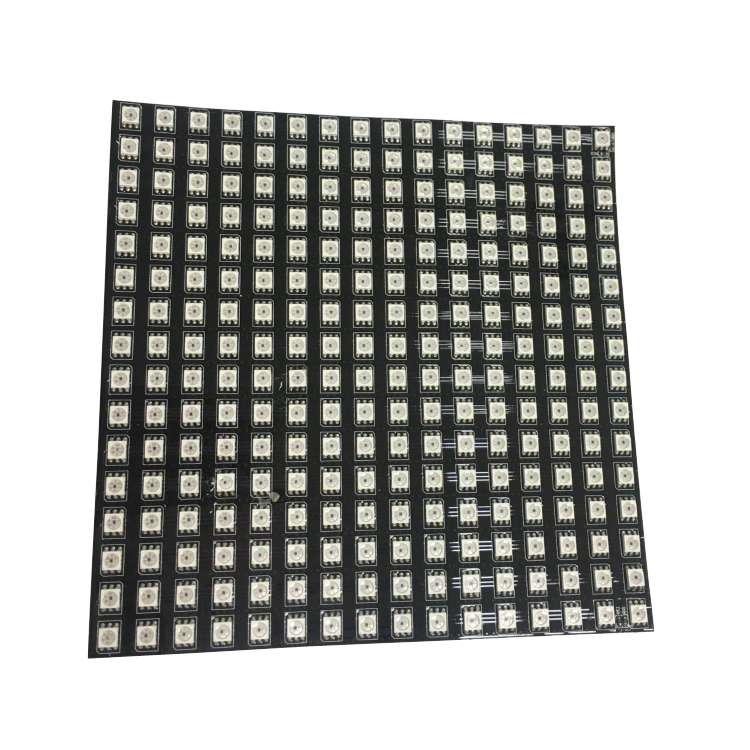

4.The Matrix is made of flexible PCB material,Non-waterproof ,for indoor use only, 1 Ounce copper PCB and black color you can also connect each matrix to together to make them as large as a P10 LED screen, make sure gave them enough Power , each matrix 64 pcs LEDs request about 2A.These matrix comes in 1pcs per bag, on the back side, soldered a pair of  4-pin JST SM connector, it‘s makes easy to link to next matrix。


Parameter

P/N Size/mm LED Type Pixel/m Luminous Angle Voltage Wattage/m IP Rate
SJ-9822-64 (5050) 8*8 9822 64 Pixel/m 448 160° DC5v 19w IP20/65

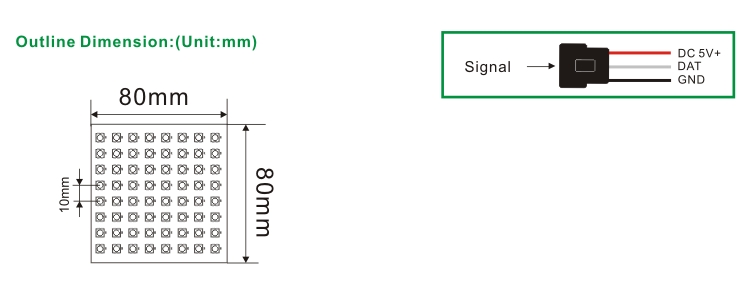

Dimension



Project case

酒店,KTV,酒吧,游戏室等休闲,汽车装饰,商店装修,
家居装饰等装饰。
