SJ-10060-8208-12V

1. Individually addressable BGR pixel strip DC12V, one GS8208 IC control one LED. support numerous color changing effects.

2. GS8208 IC has two data signal / 2 date pin , any pixel failure won’t affect the signal transfer ,unless two consecutive adjacent LED are broken.

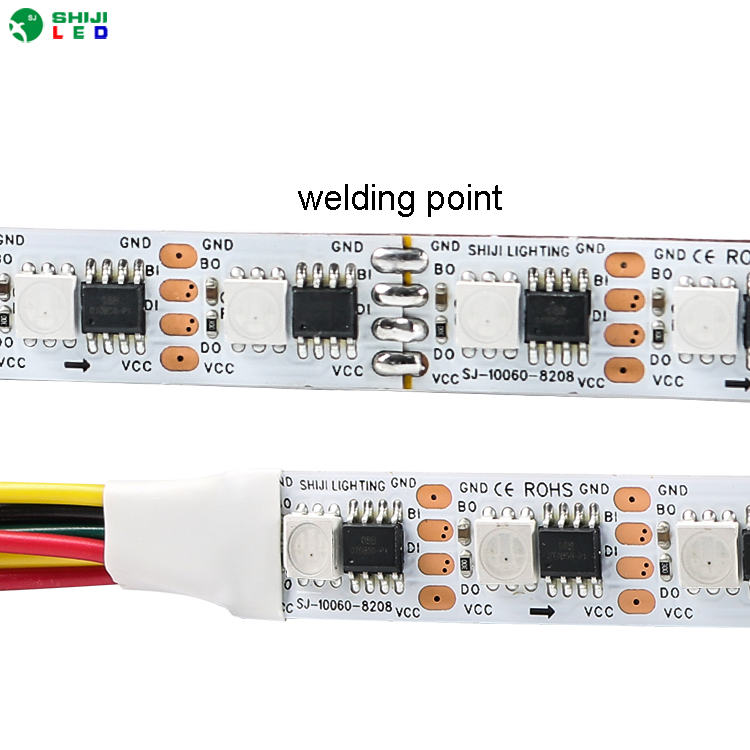

3. Flexible PCB material, whilte PCB and Black PCB optional, each LED/pixel can be cut, there is cutting lines every 16.67mm.

4. 60leds/m, low voltage 12VDC input, don‘t over 13V, otherwise you can destory the entire strip.

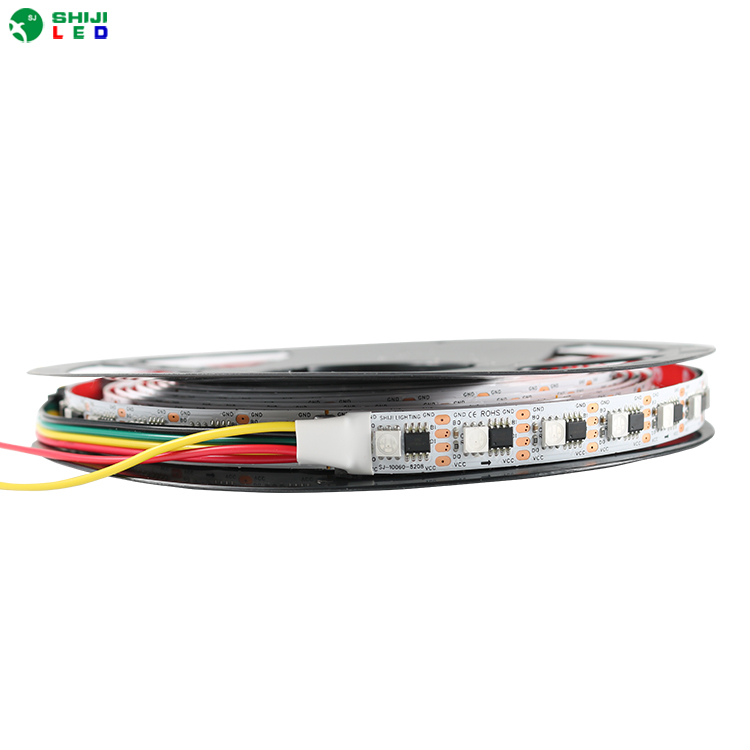

5. we commonly make it 5meters per reel with a 4pin JST SM connector on both ends and seperate power /ground wire. Customized length is workable.

6. 12mm PCB and 0.25mm thickness for Non-waterproof IP20+ 3M adhesive tape on back side of PCB.

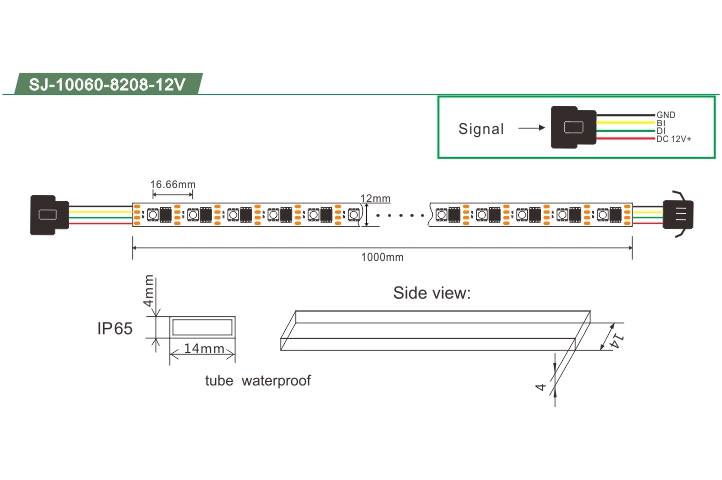

     14.5mm width and 4mm thickness for the waterproof version IP65 + silicon clips & screw.

     14.5nm width and 4mm thickness for the waterproof IP67 + aluminum case + epoxy glue +clips & screws.

7. Two data pin and no clock pin for signal transfer.

8. Controller : SD card controller, Ardunio, DMX decoder, and others.
