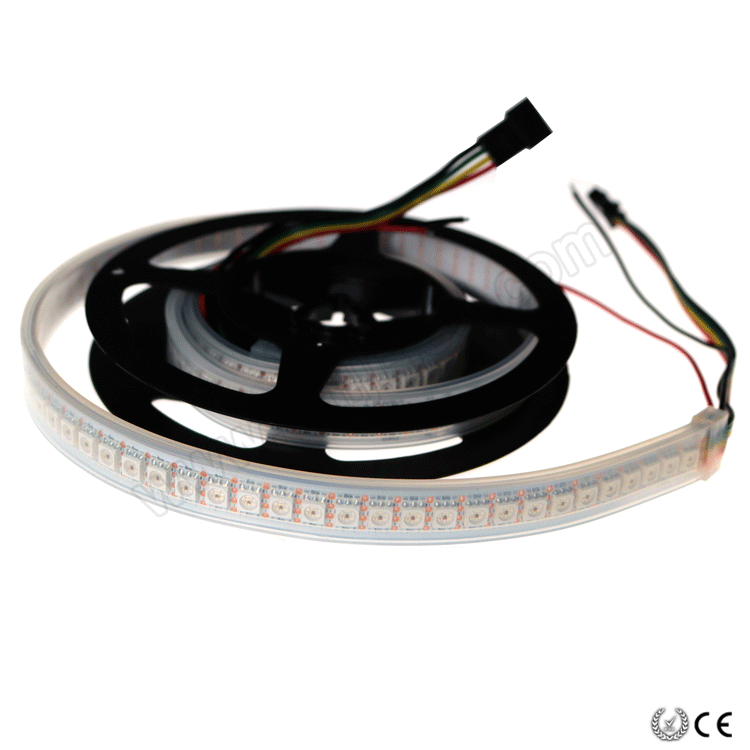

APA102C Addressable RGB Led Strip 144LEDs/m APA102C Addressable RGB Led Strip 144LEDs/m APA102C Addressable RGB Led Strip 144LEDs/m
APA102C Addressable RGB Led Strip 144LEDs/m
P/N                                      SJ-100144-APA102C
Size/mm                              1000mm * 5mm * 3mm
LED Type                             SMD 5050 RGB
LED/m                                 144 leds/m
Luminous                             900LM
Angle                                   160°
Voltage                                 DC5V
Wattage/m                           15-43.2W
IP Rate                                 IP20/IP65





SJ-100144-APA102C

Features

1. Support a variety of control systems, such as Madrix, Bluetooth controller, mobile APP, WIFI control, etc.

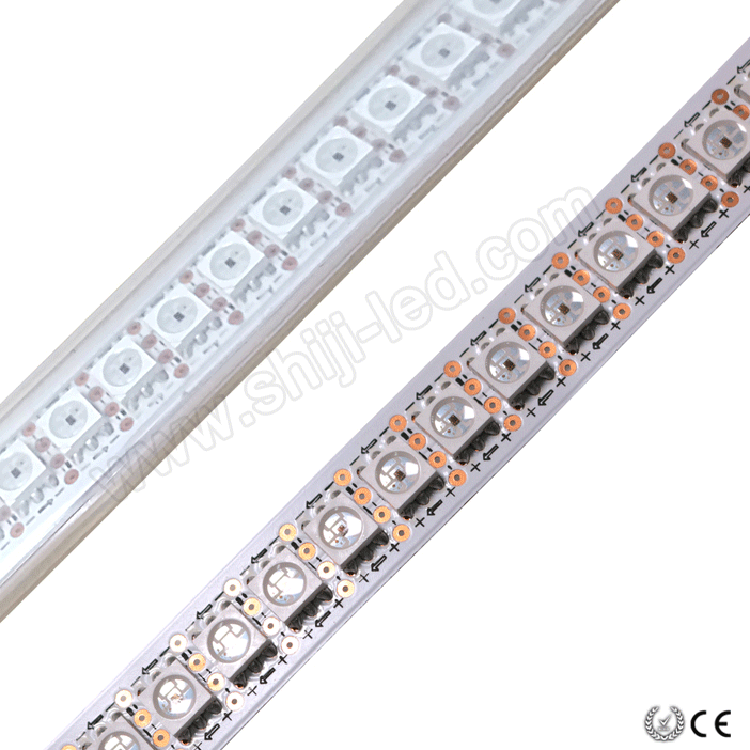

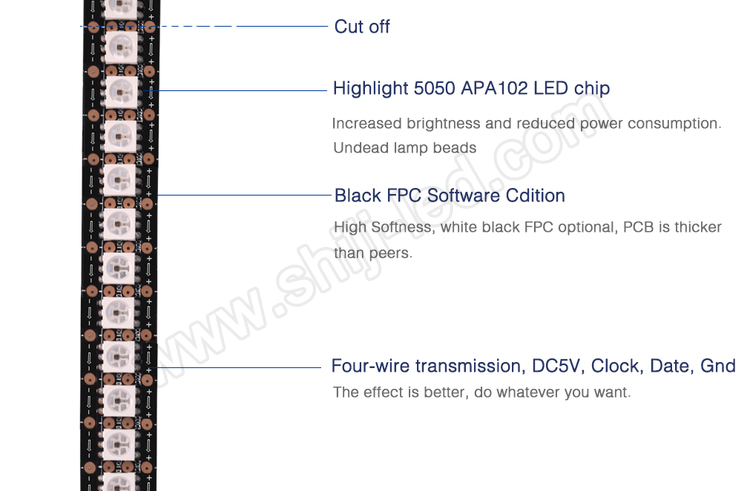

2. Each SMD 5050 RGB addressable LED is plugged into an APA102C.

3. Each LED is independent and can be cut.

4. Each LED is addressable and controllable.

5. PCB color: white and black are available.

6. The recommended length is 1 meter per roll. The length can also be customized according to your needs.

7.This PCB is thicker because the number of LEDs is relatively large.

Parameter

P/N Size/mm LED Type Pixel/m Luminous Angle Voltage Wattage/m IP Rate
SJ-100144-APA102C 1000mm*12mm*3mm APA102 5050 144pixels/m 900 160° DC5V 15-43.2W IP20/65

Dimension
