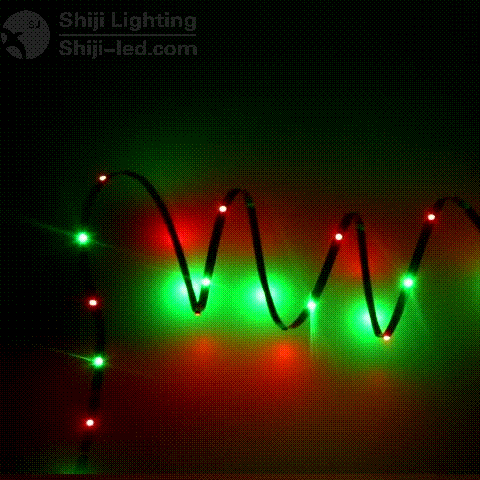

LED Strip Light
SMD 2427 Addressable Led Strip light 60Leds/m SMD 2427 Addressable Led Strip light 60Leds/m SMD 2427 Addressable Led Strip light 60Leds/m SMD 2427 Addressable Led Strip light 60Leds/m
SMD 2427 Addressable Led Strip light 60Leds/m
P/N                                      SJ-10060-2427
Size/mm                               5000mm * 4mm * 2mm
LED Type                              SMD 5050 RGB
LED/m                                  60 leds/m
Luminous                               400LM
Angle                                    160°
Voltage                                 DC5V
Wattage/m                            6-18W
IP Rate                                 IP20/IP65




SJ-10030/60-2427

Features

1、Control IC ws2811 inserted in MINI 2427 RGB LED diode, supporting numerous color-change effects.

2、White PCB and black PCB optional.

3、LED strip Light Ribbon tape comes in 2.5 meters per reel with 3Pin female/male JST SM connector on both end and separated Power / Ground Wires,Customized length is workable.

4、Flexible PCB material . Each LED/Pixel can be cut , there is cut lines every 33.33mm.

5、30LEDs/M. 5V low voltage inputted , don’t over 6V, otherwise you will destroy the entire strip.

6、5mm width PCB , 0.25mm thickness with 3M tape back side for non-weatherproof version.

7、5mm width , 4mm thick with silicon tube for waterproof type; 60leds/m,90leds/m,120leds/m,144leds/m.

8、Controller System：SD controller , DMX controller , Artnet and so on .

Parameter

P/N Size/mm LED Type Pixel/m Luminous Angle Voltage Wattage/m IP Rate
SJ-10030/60-2427 1000mm*10mm WS2811-SMD2427 30/60 Pixel/m 210/420 160° DC5V 9/18W IP20/65


Dimension
