lpd6803 rigid addressable 48 pixels led light bar

Feacture:

-this digital bar used 10pcs chip to drive 48 RGB LED,and it‘s cut-able of
each 3 LED with IC
PCB size:W12*500mm, and color of the circuit board:White
-we have been made many versions for customer
non-waterproof,bare PCB with 4Pin connector in back side
Aluminum housing + PC lens non-waterproof
Aluminum housing+expoy glue+PC lens waterproof IP67
-Each bar included 2pcs metal holder and 2 pcs Screw
every 5pcs bar included 1 T style connector (for powering)
-Custom size available

Datasheet

Item No. VCC LEDs/50cm Watt/50cm IC Gray level PCB size IP Grade
SJ-10030-6803 DC12V 30pcs 5050 RGB Max:7.2W 6803 32 500*12mm IP66

Item No. VCC LEDs/50cm Watt/50cm IC Gray level PCB size IP Grade
SJ-10048-1912 DC12V 48pcs 5050 RGB Max:24W 6803 32 1000*12mm IP65

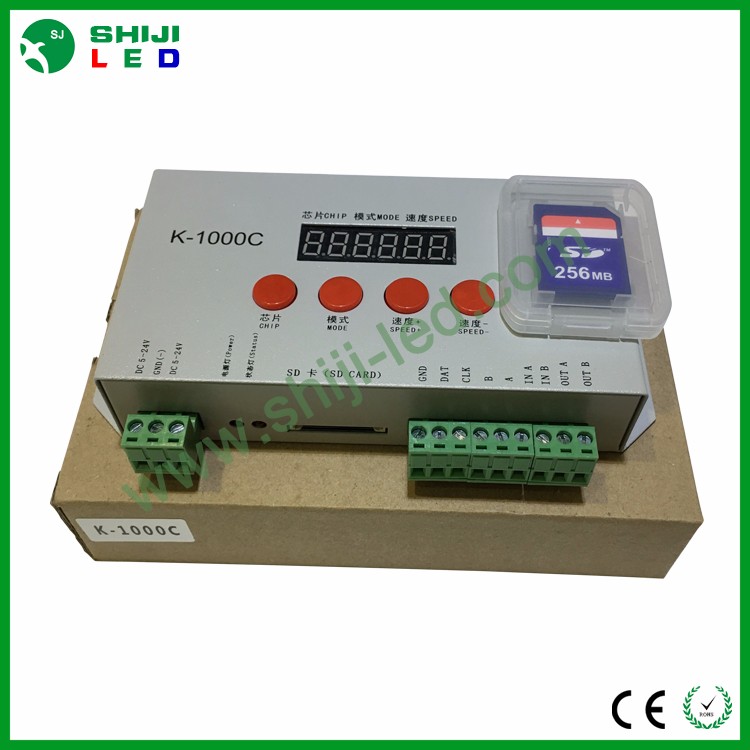

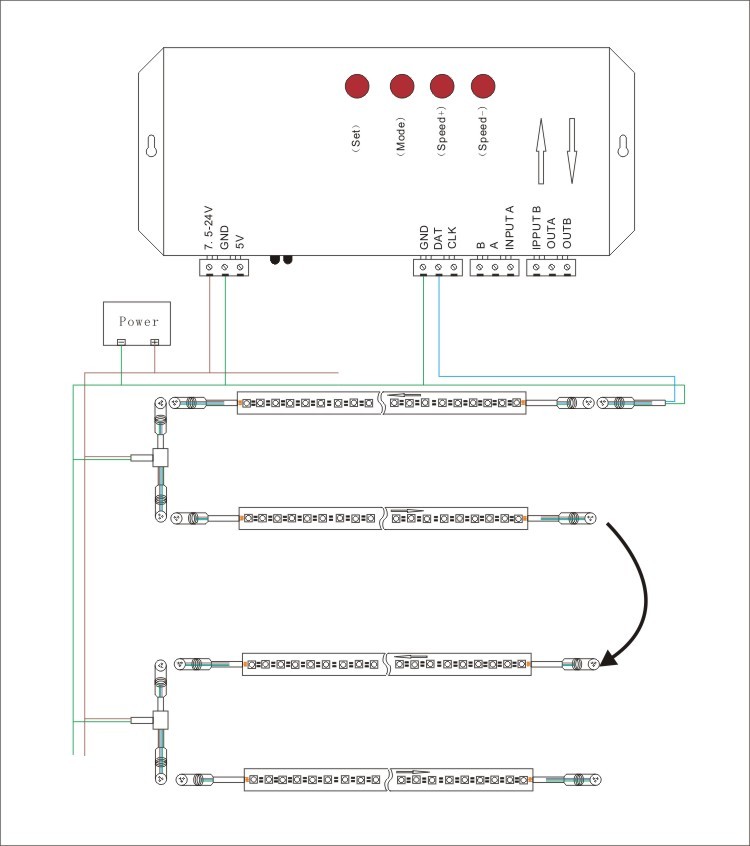

controller t-1000s

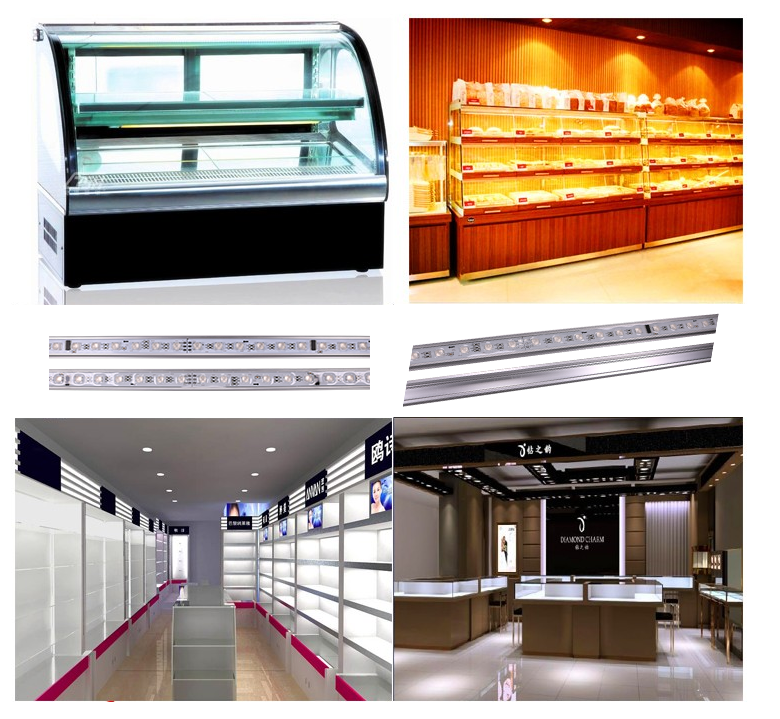

Application:
